Ultra-thin Ceramic Label With Long Range Reading (LP-9040)

Ultra-thin Ceramic Label With Long Range Reading (LP-9040)

Categories: ,

Ultra-thin Ceramic Label With Long Range Reading (LP-9040)



Description:

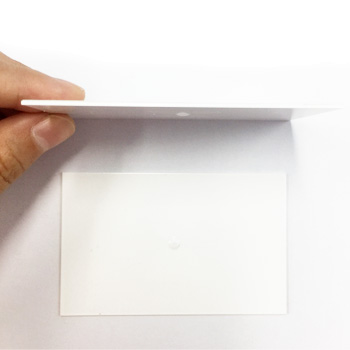

LP-9040 is a Ceramic Vehicle Card, specially designed antenna support long range reading requirements reach max. 8m with fixed reader. LP-9040 has an excellent performance in smart vehicle management and electronic vehichle identification.



Features:

Support Long Range Reading

Anti-tamper design

Ultra-thin thickness only 0.8mm



RF air protocol UHF EPC Global Class1 Gen2, ISO 18000-6C
Functionality Read / Write (user programmed)
IC type Impinj M4QT
Memory configuration  128-bit EPC( extended memory: 512bits) 64-bit TID
Operating frequency 865-928MHz
Attached surface Nonmetal
Net weight 7.0g
Dimensions 90*40*0.8mm
Encapsulating material Ceramic
Installation Back-adhesive
Read distance Above 4.5m (Handheld Reader with 28dBm)

Above 8.0m (Fixed Reader with 30dBm)

(Reading distance depends on the environment,readers,etc)

Working temperature -30~85℃ / -22~185℉
Storage temperature -40~150℃ / -40~302℉
EEPROM read and write times 100,000 cycle
IP degree IP65
Color White (can be customized)



Application:

Smart Parking Management

Electronic Vehicle Identification
