Max. 320℃ high-temperature UHF RAIN RFID tag for metal

Max. 320℃ high-temperature UHF RAIN RFID tag for metal

Category:

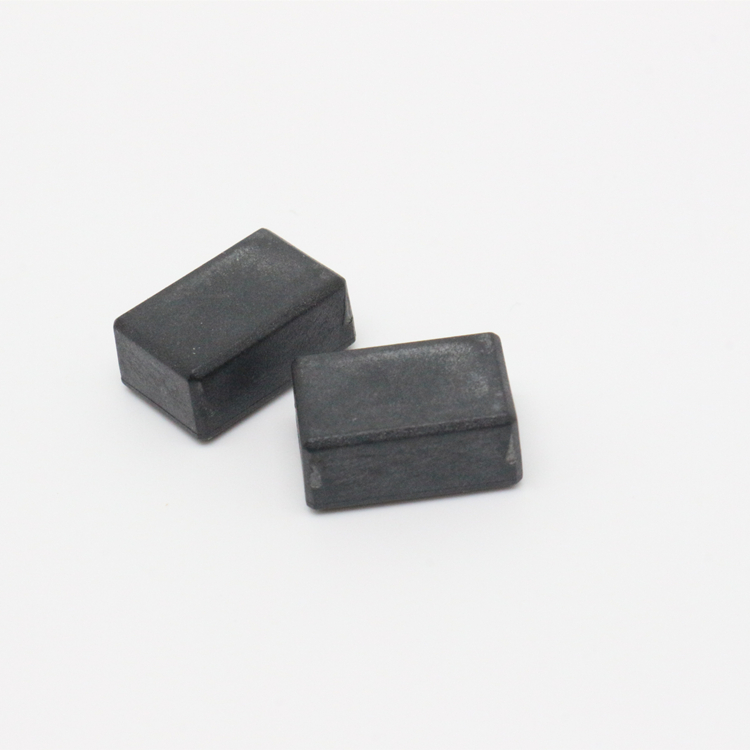

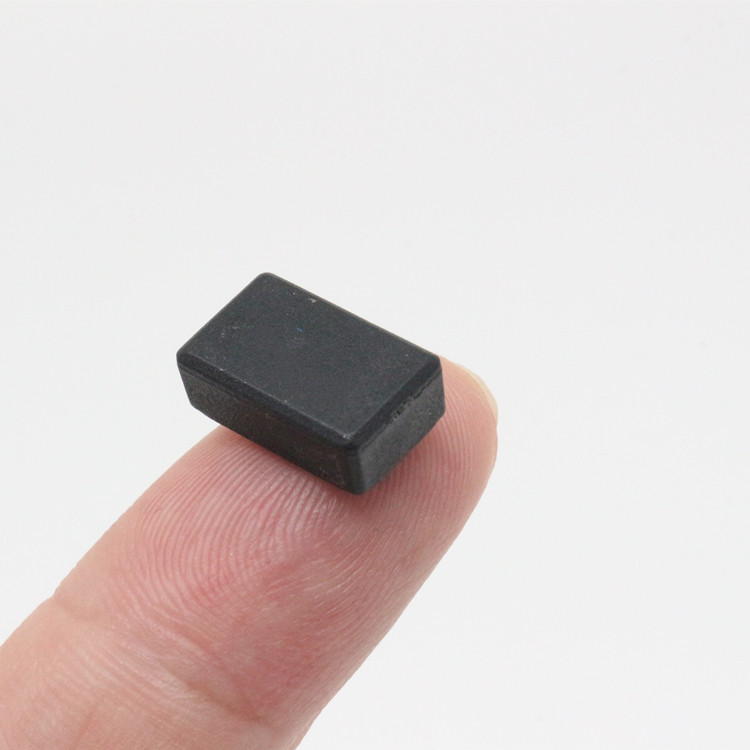

The LightPioneer high temperature on metal RFID tags offers a compact form factor that survives a market leader extra high temperature of 320°C.

The UHF RAIN RFID tag’s rugged design delivers full performance with industry-grade mounting solutions, an IP68 rating, and a read range of 3 meters on metal, ideal for tracking industrial metal product from the start of the manufacturing process to the end of the manufacturing process.

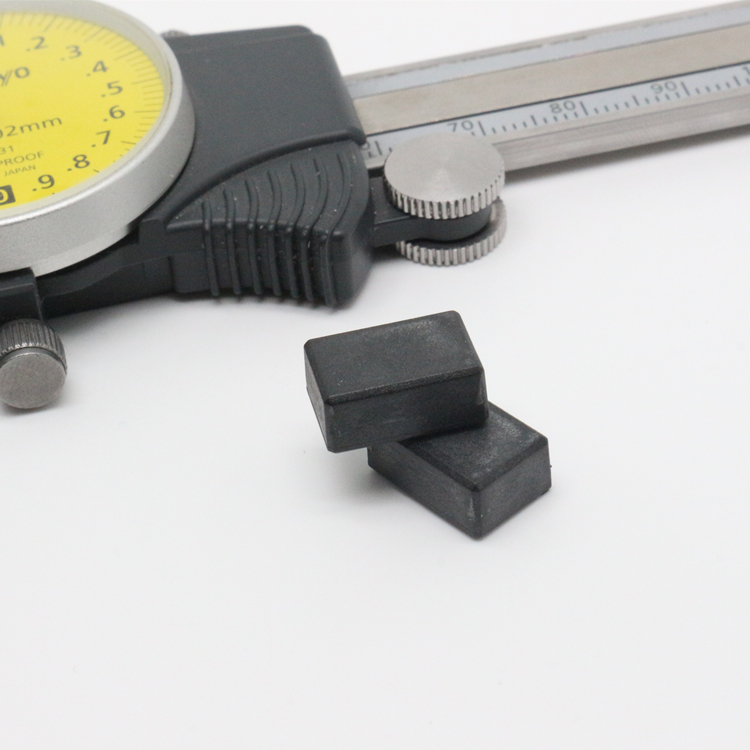

Dimensions (mm) 13.5 x 9 x 6
Operating frequency 905-928 MHz

866-868MHz

IC type Impinj R6-P
Memory configuration 126-bit-EPC bits; 32-bit user memory
Functionality Read / write (user programmed)
Read Range

on-metal(2W ERP)

Up to 3M
Operating Temperature -30°C to +85°C
Ambient Temperature -30°C to +320°C

(Constant 6hrs testing under 320℃)

Protection Class  IP68
Mounting System Industry adhesive

Epoxy Resin

Data retention 50 years
Warranty (limited) 3 years
