Extra strong embeddable RFID tags designed for Downhole Equipment tracking

Extra strong embeddable RFID tags designed for Downhole Equipment tracking

Category:

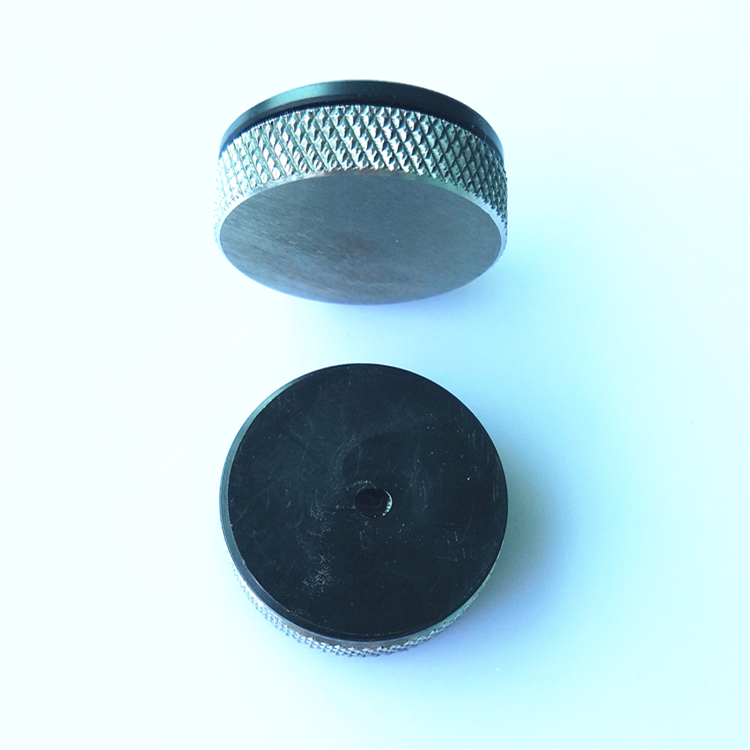

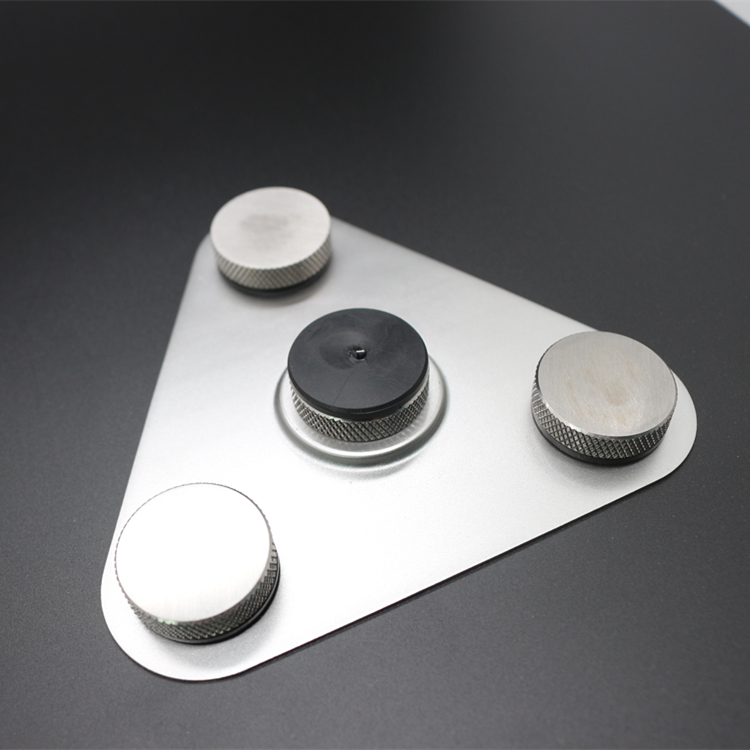

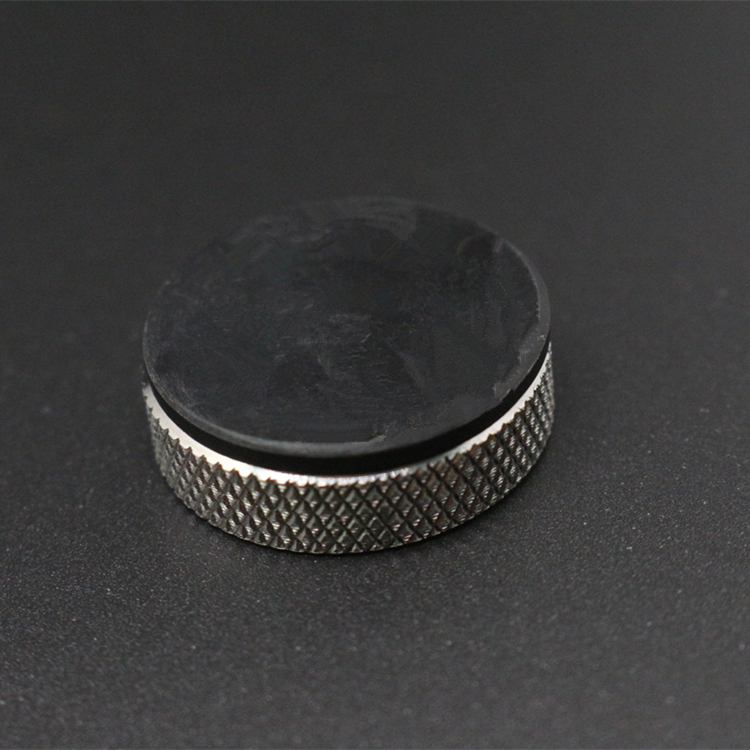

It features to operations in the field for boring well, under extreme pressures, vibrations, temperatures, and chemicals. The embeddable and round form-factor allows for firm and seamless insertion in metal structures.



Dimensions (mm) Φ24 x 8
Operating frequency 902-928 MHz

866-868MHz

IC type Impinj R6-P
Memory configuration 126-bit-EPC bits; 32-bit user memory
Functionality Read / write (user programmed)
Read Range

on-metal(2W ERP)

Up to 3M
Operating Temperature -30°C to +85°C
Ambient Temperature -30°C to +300°C

(Constant 6hrs testing under 320℃)

Protection Class  IP68
Mounting System Epoxy Resin

Welding

Data retention 50 years
Warranty (limited) 3 years
