ISO Standard Card UHF for Vehicle Parking (LP-8654)

ISO Standard Card UHF for Vehicle Parking (LP-8654)

Categories: ,

 ISO Standard Card UHF for Vehicle Parking (LP-8654)



Description:

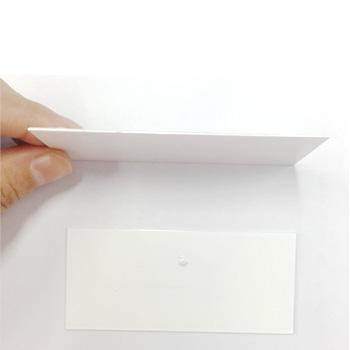

LP-8654 is a UHF rfid tag specially for vehicles parking management, with ISO standard size and made of ceramic raw material. Its special antenna are designed for long range reading requirements.



Features:

Supprot Long Range Reading

Support Embedded Installation



RF air protocol UHF EPC Global Class1 Gen2, ISO 18000-6C
Functionality Read / Write (user programmed)
IC type Impinj M4QT
Memory configuration 128-bit EPC( extended memory: 512bits) 64-bit TID
Operating frequency 865-928MHz
Attached surface Nonmetal
Net weight 11.0g
Dimensions 86*54*1 mm
Encapsulating material Ceramic
Installation Back-adhesive
Read distance Above 4.5m (Handheld Reader with 28dBm)

Above 8.0m (Fixed Reader with 30dBm)

(Reading distance depends on the environment,readers,etc)

Working temperature -30~85℃ / -22~185℉
Storage temperature -40~150℃ / -40~302℉
EEPROM read and write times 100,000 cycle
IP degree IP65
Color White (can be customized)



Application:

EVI(Electronic Vehicle Identification)

Smart Parking Management
