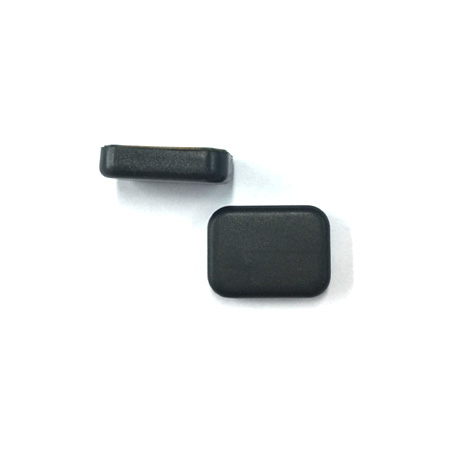

Ceramic Embedded Tag for Medical Instruments Management(Seed Tag)

Ceramic Embedded Tag for Medical Instruments Management(Seed Tag)

Ceramic Embedded Tag for Medical Instruments Management



Description:

SeedTag is a classical small ceramic antenna tag, with special design for harsh environment application. Reading range reach 3 m by Handheld reader, with stable performance support embedded mount. It provides solution for manufacturing management, warehouse, IT asset management, etc.



Features:

Support Embedded mount
Industrial High-strength durability



Protocol UHF EPC Global Class1 Gen2, ISO 18000-6C
Operating Frequency 920-925 MHz, 865-867MHz
Working Mode Read/Write
Raw Material Ceramic
Memory EPC: 96 bits, (can add 512 bits)
On/Off Metal On Metal
Application Temperature -30~85℃ / -22~185℉
Storage Temperature -40~120℃ / -40~248℉
Read/Write Distance 1.5 m (Handheld Reader with 28dBm)
3.0 m (Fixed Reader with 30dBm)
(Reading distance depends on the environment,readers,etc)
Size 16*11*3.8mm
Weight 2.02g
IP Rate IP65
Color Black(Can be customized)



Application:

Medical instrument management

Gun management

IT asset management

Tools management
