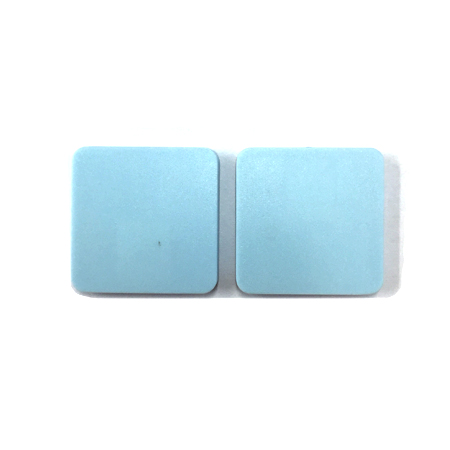

Metal Mount RFID High Memory Quanray Chip UHF Tags(LP-2828)

Metal Mount RFID High Memory Quanray Chip UHF Tags(LP-2828)

Metal Mount RFID High Memory Quanray chip UHF Tags(LP-2828)



Description:

LP-2828 is a on metal tag with good cost performance, which can apply in various outdoor and indoor environment. Specially meet stable long range reading distance requirements. LP-2828 can provide solution for manufacturing management, warehouse management, big equipment management and asset management,etc.



Features:

Long distance identification
Industrial high-strength durability



Protocol ISO18000-6C(EPC Global Class1 Gen2)
Operating Frequency 920-925 MHz, 865-867 MHz
Working Mode Read/Write
Polarization Mode Linear
Memory EPC: 96 bits, (can add 512 bits)

1.5k or 64k optional

Data Protection Password Change,Lock and Destroyed
Data Maintain Over 10 years, Write circle above 100,000 times
Application Temperature -30~85℃ / -22~185℉
Storage Temperature -40~150℃ / -40~302℉
Read/Write Distance 3.0 m (Handheld Reader with 28dBm)
4.5 m (Fixed Reader with 30dBm)
(Reading distance depends on the environment,readers,etc)
Size 28*28*2.8mm
Weight 9.85g
IP Rate IP67
Color Black(Can be customized)



Application:

Industrial manufacture management
Warehouse management
Big equipment and Asset management



About chip for high memory UHF tags — Quanray Qstar-2A

Qstar-2A is a highly integrated single chip UHF RFID Tag IC. The chip conforms to the EPC global Class 1 Gen 2 protocol, and therefore capable of identify speeds of up to 200 tags per second (based on 96-bit EPC).

Qstar-2A operates at extremely low power levels, and read and write performance is enhanced by Qstar-2A’s proprietary antenna diversity approach, affording insensitivity to tag orientation and overall robust operation.

Qstar-2A is implemented in a low cost CMOS process and uses proven and cost effective EEPROM technology.

Qstar-2A offers maximum 64k bits User memory for widely application. User memory can write locked on 4k bits boundaries, supporting a variety of public/private usage models. To preserve privacy and prevent unauthorized tampering, Qstar-2A also features a kill switch with secure 32-bit password protection.
