Industrial-grade High Strength Embedded Metal Drill Tag



Description:

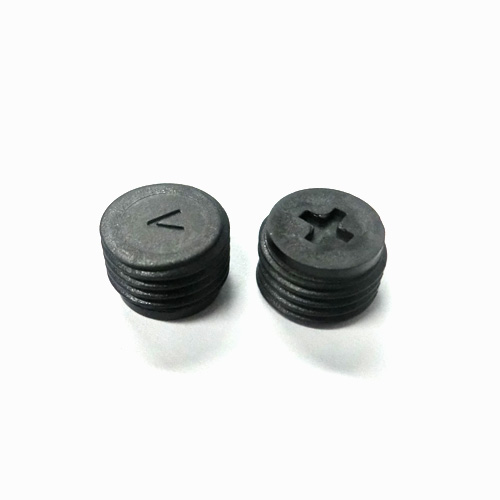

Drill Tag is utilized for deep underground in coal exploration, mining and other harsh application environment. The tag has high temperature resistance, anti-seismic and other utility application experience.



Features:

Small Size with Threaded installation

IP68 Rate Encapsulation



Protocol UHF EPC Global Class1 Gen2, ISO18000-6C(EPC C1G2)
Operating Frequency 865-867MHz, 902-925MHz
Working Mode Read/Write
Polarization Mode Linear
Memory EPC:96 bits, (Can add 512 bits)
Data Protection Password Change,Lock and Destroyed
Data Maintain Over 10 years, Write circle above 100,000 times
Operation Temperature -30~85℃/ -22~185℉
Storage Temperature -40~150℃ / -40~302℉
Reading Distance 0.5m for Handheld Reader (Handheld Reader with 28dBm)
1.0m for Fixed Reader (Fixed Reader with 30dBm)
(Reading distance depends on the environment,readers,etc)
Size φ12*7mm
Material Ceramic and Specialty Materials
Installation Screw-type
Weight 2.05g
IP Rate IP68
Color Black(Can be Customized)



Application:

Complex and harsh application environment

Production management

Mould lean management
