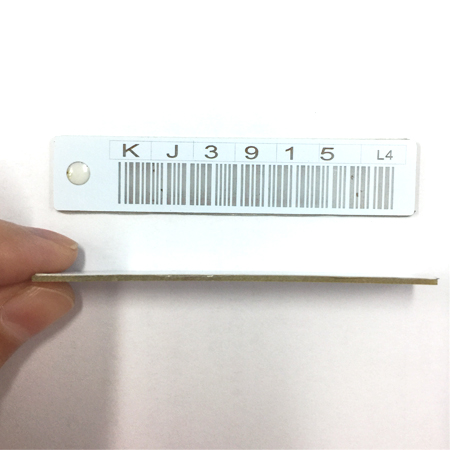

Waterproof Off-metal UHF Barcode Tag for Pallet (LP-7716)

Waterproof Off-metal UHF Barcode Tag for Pallet (LP-7716)

Categories: ,

Waterproof Off-metal UHF Barcode Tag for Pallet (LP-7716)



Description:

LP-7716 is designed for the off-metal environment, such as plastic or mood trays, asset management,etc. It is waterproof, anti-pollution, non-fragile, support printing barcode on tag surface, which is a better replacement of the papaer barcode tag.



Features:

Support Off-metal surface

Industrial grade durability



RF air protocol UHF EPC Global Class1 Gen2, ISO 18000-6C
Functionality Read / Write (user programmed)
IC type Impinj M4QT
Memory configuration  128-bit EPC( extended memory: 512bits) 64-bit TID
Operating frequency 865-928MHz
Attached surface Nonmetal
Net weight 3.20g
Dimensions 77*16*1.0mm
Encapsulating material special double sided composite materials
Installation Back-adhesive
Read distance Above 2.0m (Handheld Reader with 28dBm)

Above 4.0m (Fixed Reader with 30dBm)

(Reading distance depends on the environment,readers,etc)

Working temperature -30~85℃ / -22~185℉
Storage temperature -40~150℃ / -40~302℉
EEPROM read and write times 100,000 cycle
IP degree IP65
Color  white (can be customized)



 Application:

Asset Management

Pallet Management
