UHF RFID Temperature Sensor Tags for liquid test

UHF RFID Temperature Sensor Tags for liquid test

Key Parameters

Protocol: ISO 18000-6C
Freq: 902-928MHz
Chip: LTU3
Memory: TID: 128 bits
EPC: 96 bits
User: 160bits(user editable part-128bits, sensor parameter-32bits)
Read distance: 2.5M (EIRP=4W)
Size: Probe:20*Φ5mm, Total 160mm
Working temperature: -40℃~150℃
Endurance temperature -40℃~150℃
Protection level : IP65
Insulation resistance ≥2000MΩ
Power frequency withstand voltage 39kV/ 5min、 42kV/1min
Partial discharge level 24kV≤10pC
Lightning protection grade 170kV/50ms
Radiation immunity level ≥10V/m

Application

Cold chain transportation box internal temperature real-time monitoring

Metal structure internal temperature monitoring

Production line single product tracking

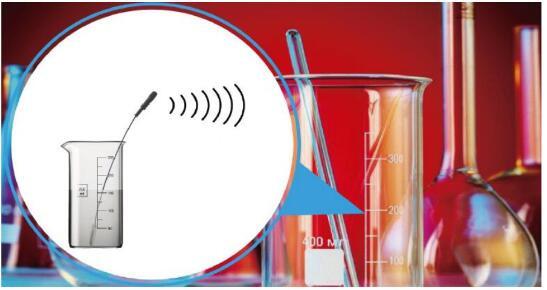

Installation methos and examples

Palce the metal head in liquid or ther enclosed space where the hot spot is,and put the other

side(antenna)within the communication range of the reader.
