Smallest UHF RFID Passive Tags Used in Asset Tracking(LP-0505)



Description:

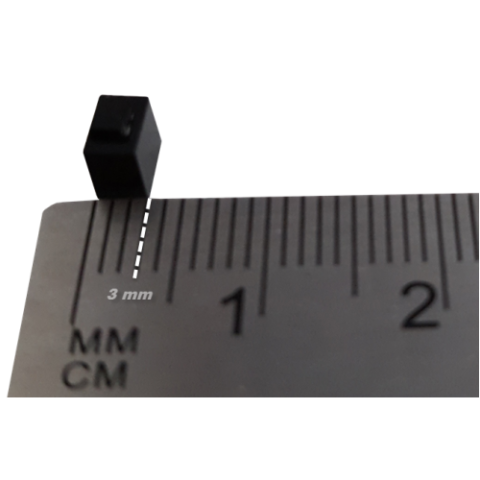

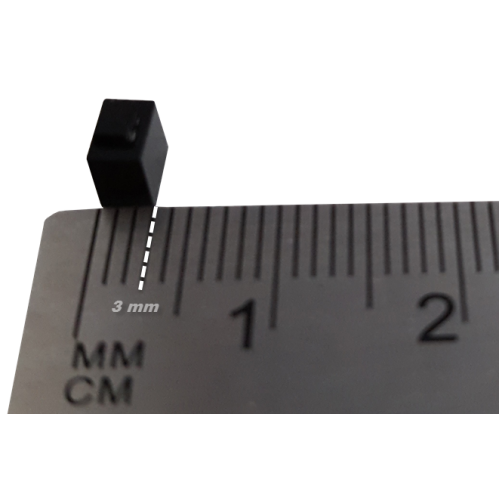

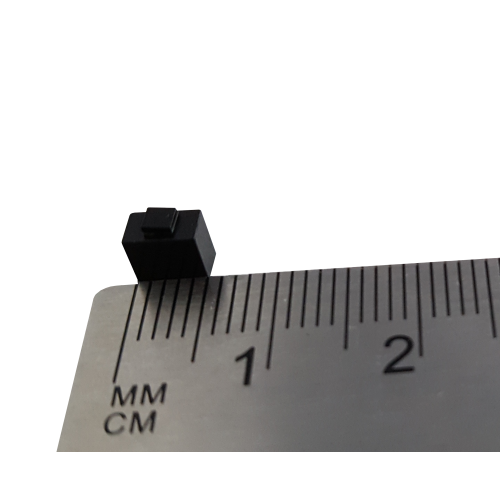

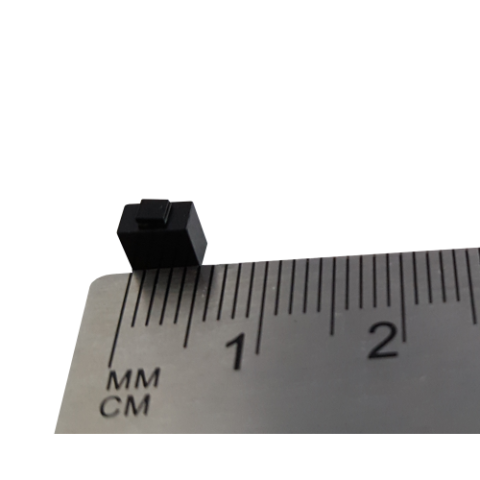

The LP-0505 is the smallest RFID tag. The size is 5x5x3mm with a read distance of 0.3-0.6m. This passive UHF Class 1 Gen 2 ceramic read-on-metal tags can be embedded into assets for RFID tracking in the aerospace, industrial, healthcare and other industries and work well even in hard environment.



Features:

Smallest passive RFID metal tag
Can be embedded in metal
Ceramic Appearance



Protocol ISO18000-6C(EPC C1G2)
Operating Frequency 902-928MHz, 865-867MHz
Working Mode Read/Write
Polarization Mode Linear
Memory EPC:96 bits, (Can add 512 bits)
Data Protection Password Change, Lock and Destroyed
Data Maintain Over 10 years, Write circle above 100,000 times
Operation Temperature -30~85℃/ -22~185℉
Storage Temperature -40~150℃ / -40~302℉
Reading Distance Above 0.3m (Handheld Reader with 28dBm)
Above 0.6m (Fixed Reader with 30dBm)
(Reading distance depends on the environment,readers,etc)
Size 5*5*3mm
Weight 0.38g
IP Rate IP65
Color Black(Can be Customized)

Application:

Surgical instrument management

Small asset tracking

Source tagging
