Portable UHF USB Desktop RFID Reader (LP-005)

Portable UHF USB Desktop RFID Reader (LP-005)

Categories: ,

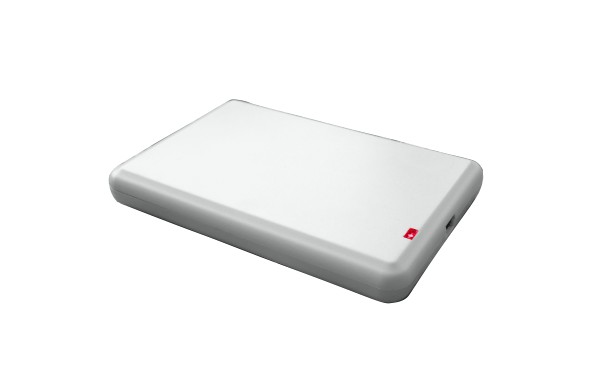

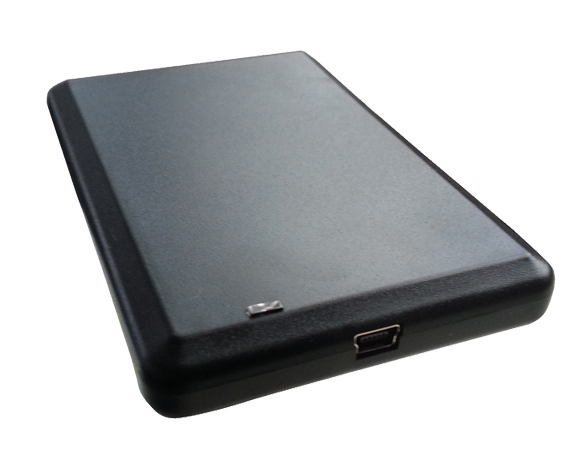

Portable UHF USB Desktop RFID Reader (LP-005)


This Portable UHF USB Desktop RFID reader is a portable USB card, with a multi-protocol compatible, small volume, faster and more tag read advantages of the electronic label can be authorized, report the loss of STH, programming, such as operation, has been widely used in various kinds of RFID application systems.


Key Features


  • Built-in high performance antenna
  • Compatible with international standards and domestic multi-protocol
  • Frequency Hopping Spread Spectrum mode, with powerful anti-jamming capability
  • Encrypting tag’s data capability
  • Support many development languages e.g. VC, VB, C# etc
  • Available in many connectivity and customizable.


Technical Specifications


 Model NO.  LP-005
 Operating Frequency  865~868MHz & 902~928MHz
 Tag Protocols  ISO18000-6BISO18000-6C(EPC GEN2)
 Operation Mode  FHSS
 RF Power Output  10 dBm
 Reading Speed  Software  Programmable, Average Reading per 64Bits: <6ms
 Communications Interface  USB ports
 Reading Mode  Command
 Read/Write Distance  <0.1m
 Reading Clue  Buzzer and LED
 Antenna Compatibility  Built-in small round polarization
 Power Supply  USB port to offer power
 Dimensions  104mmx68mmx10mm
 Weight  0.1 KG
 Operating Temperature  –20~+80
 Housing  ABS
 Color  White/Black
