Multiple Reading Powerful Long range UHF RFID Handheld Computer (FCC ID:2AOJULP006GI)



Overview

LP-006-G is a fully rugged, highly capable, handheld computer which offers best-in-class read range and super long battery life and is the best fully integrated all-in-one handheld terminal to deliver the ability to read Automatic Equipment Identification (AEI) RFID tags to the palm of the hand.

With unmatched versatility and a lightweight ergonomic form factor, it is designed for combination of 1D/2D scanner with LF/HF(NFC)/UHF module to provide the complete solutions for Automatic data acquisition, and widely applied for supply chain, manufacturing, and asset management etc.

Advanced innovative charging solutions on the market

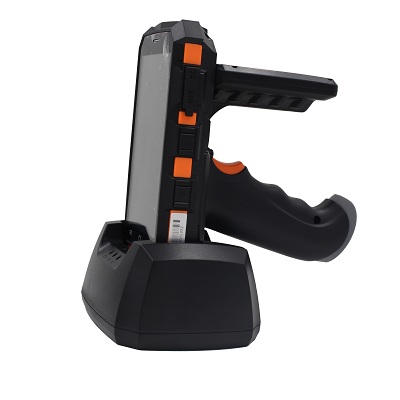

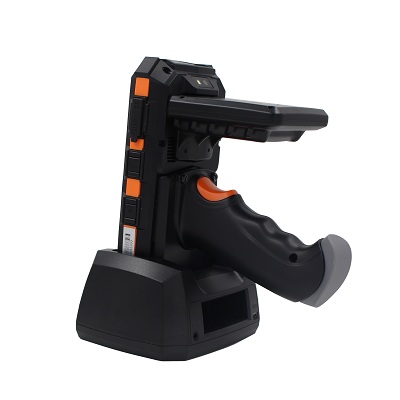

LP-006-G provide the best solutions for all-in-one integration battery in the handheld reader industry. Due to most of the handheld readers available on the market are with separated battery design for the reader device and UHF module and without cradle, it usually cause power off, battery power often is empty while Gun trigger has extra battery, but it doesn’t power the UHF module, users need to take down the battery to charge and re-install, it seriously affect the efficiency. Besides, the separated battery will fall back toward the inverse poles if charging both of them at the same time, it would greatly reduce the service life of batteries. The LP-006-G utilizing a special-designed all-in-one battery to charge the device with UHF module together, it reduces the charging time and make it more user friendly. In addition to, LP-006-G smart Android reader comes with a portable cradle, make it realize charging anywhere and anytime



Key Features



Impinj R2000 chip & Original Thingmagic M6E UHF Reader option

Optional Impinj and ThingMagic UHF Reader can guarantee the high reading accuracy and long reading distance



Long Range Reading Distance

Impinj R2000 UHF Reader reading range up to 7 m, ThingMagic M6E Micro reach up to 8 m



Single and Mufti-tag reading optional

Max. 200pcs tag reading with Impinj R2000 UHF reader

Max. 600pcs tag reading with ThingMagic M6E UHF reader



High Speed Data Communication

Double insurance of 4G high Speed network and dual-frequency WIFI network ensure the real-time data communication for different using environment



All-in-one Integrated Battery Design

All-in-one built-in battery 8000mAh ensure long time and high efficiency with convenience replacement

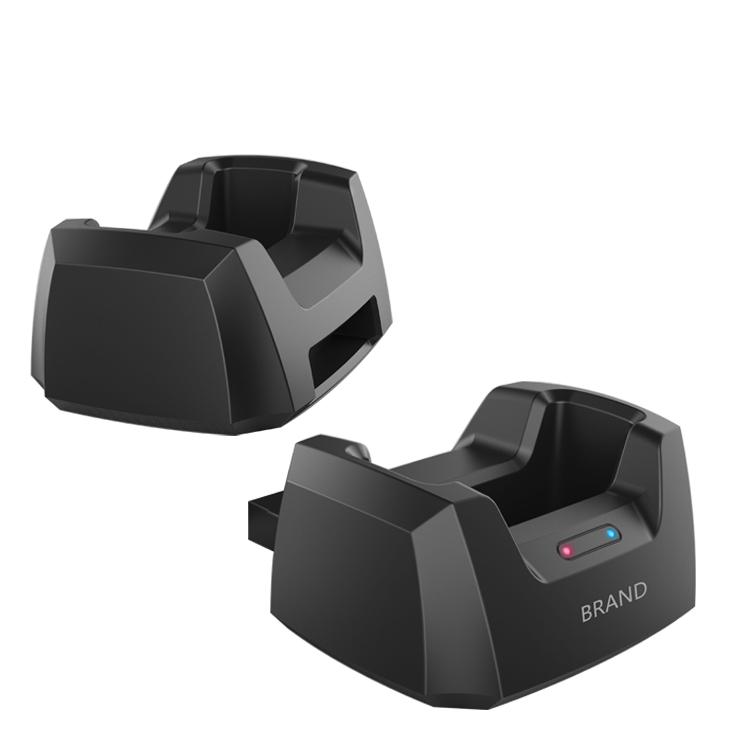

Portable Charging Cradle

Optional Charging Cradle is easy to carry, realize charging everywhere



Highly Customized Structure for harsh industrial environment

‘All-in-One’ hardware design conception expand the hardware modules integration based on different project requirements



Technical Specifications

SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension 170mm(H)x85mm(W)x23mm(D)±2 mm
Weight Net Weight :1000g (including battery)
Display 5.0 inch Gorilla Glass 3 9H TFT-LCD(720×1280)touch screen with backlight
Backlight LED backlight
Keypads 3 TP keys, 6 function keys, 4 side buttons
Expansions 2 PSAM, 1 SIM, 1 TF
Battery Rechargeable Li-ion polymer, 3.7V, 8000mAh
PERFORMANCE CHARACTERSTICS
CPU Quad A53 1.5GHz quad-core
Operating System Android 7.0
Storage 2GB RAM, 16GB ROM, MicroSD(max 128GB expansion)
USER ENVIRONMENT
Operating Temp. -20℃ to 50℃
Storage Temp. -20℃ to 70℃
Humidity 5%RH to 95%RH(non-condensing)
Drop Specification 5ft./1.5 m drop to concrete across the operating temperature range
Sealing IP65, IEC compliance
ESD ±15kv air discharge, ±8kv direct discharge
DEVELOPMENT ENVIRONMENT
SDK LightPioneer Software Development Kit
Language Java
Environment Android Studio or Eclipse
DATA COMMUNICATION
WWAN TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7,17, 20;

WCDMA(850/1900/2100MHz);

GSM/GPRS/Edge (850/900/1800/1900MHz);

WLAN 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS GPS(embedded A-GPS), accuracy of 5 m
DATA CAPTUER
BARCODE READER(OPTIONAL)
1D barcode 1D laser engine Symbol SE955/Honeywell N4313
Symbologies All major 1D barcodes
2D barcode 2D CMOS Imager Honeywell N6603 & New Land optional
Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution 8.0 megapixel
Lens Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID LF Frequency 125KHz/134.2KHz(FDX-B/HDX)
Protocol ISO 11784&11785
R/W Range 2cm to 10 cm
RFID HF Frequency 13.56MHz
Protocol ISO 14443A&15693
R/W Range 2cm to 8cm
RFID UHF Frequency 865~868MHz or 920~925MHz
Protocol EPC C1 GEN2/ISO 18000-6C
Antenna Gain Circular antenna(3dBi)
R/W Range Domestic UHF Reader:

5 m, single tag reading

Impinj R2000 UHF Reader:

5~ 7 m, support reading Max 200pcs per time

ThingMagic M6E Micro UHF Reader:

5 ~7 m, support reading Max 600pcs per time

(tags and environment dependent)

Active 2.45GHz Read range more than 200 m
433MHz Read range more than 200 m
FINGERPRINT READER(OPTIONAL)
Sensor TCS1CT
Sensor type Capacitive, area sensor
Resolution 508 DPI
Performance FRR<0.008%, FAR<0.005%
Capacity 1000
PSAM SECURITY(OPTIONAL)
Protocol ISO 7816
Baudrate 9600, 19200, 38400,43000, 56000, 57600, 115200
Slot 2 slots(Standard)
ACCESSORIES
Standard 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable
Optional Carrying case; Cradle
