Ultra rugged IP67 Tablet PC with UHF/LF/HF/Barcode Reader
- Share:
Latest Android 12 Ultra Rugged Tablet PDA with UHF/HF/LF/Barcode Reader optional
Overview
The industrial IP67 PDA utilizes advanced technology and provides powerful functions with reliable performance.
This rugged PDA adopts Qualcomm Snapdragon 450 platform, Octa core 2 GHz CPU and Android 12 operation system and can configure barcode scanning, RFID reader, fingerprint identification as well as other information acquisition module. It utilizes advanced technology and provides powerful function and reliable performance. The PDA adopts the combination of host and modular jacket design concept. It not only has intelligent operation platform but also has functional modular jacket with flexible configuration. So it can satisfy the customized requirements from different industries.
The Android PDA features super long battery life, IP67 high reliable three-proof structure, drop resistance and LCD screen readable under sunlight. The tablet’s ruggedness is unparalleled. It’s IP67-rated and meets stringent MIL-STD-810G U.S. military standards, which means it’s impervious to both dust and water and can survive repeated drops, strong vibrations.
Advanced system
Android 12 os; Octa core 2GHz CPU; RAM 4GB,ROM64GB
Waterproof
IP67 protection grade, can be immersed in water at 1.2m depth for 40 minutes, this open up possibilities for maritime and healthcare enviroment.
Visible under strong light
7 inch LCD screen, 1280×800 IPS capacitive touch screen
Powerful & Flexible expansion

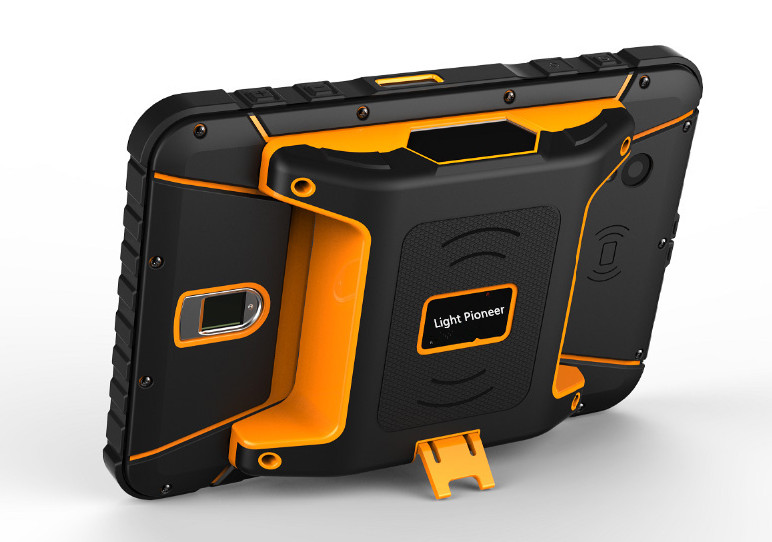

Unique back jacket design brings flexible expansion for UHF/LF/HF/Barcode etc.
Multi communication
wireless communication 4G, WIFI, Bluetooth etc.
Super long life
7200mA, more than 600 hours of continuous standby
Light weight
590g only, the lightest tablet with so many strong funciton
Technical Data:
General Specifications
| Model NO. | LP-007 | |
| Operating System | Android 12 OS | |
| CPU | Qualcomm SDM450 Octa core CPU, 2GHz | |
| RAM | RAM: 4G | |
| FLASH: 64G | ||
| Extended Storage | Micro SD, Maximum 256G | |
| USB port | Type-C | |
| OTG | Support, through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend RS232 serial port | |
| External port | Charge port, headphone port | |
Protection Grade
| Industrial Protection Grade | IP67 | |
| Drop Grade | Drop resistance from 1.2m | |
Wireless Communication
| Bluetooth | Support 5.0 | |
| GPS | Support GPS, DBS, GLONASS and professional GPS,Ublox;
GPS and Beidou (alternative) |
|
| WIFI | Support IEEE 802.11a/b/g/n/ac (2.4G+5G dual band) | |
| Band | Band Version 1(North America version) | |
| LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B25/B26
LTE-TDD:B41 WCDMA:B1/B2/B5/B8 GSM:850/900/1800/1900M |
||
| Band Version 2(China and Europe verison) | ||
| LTE-FDD:B1/B3/B5/B8
LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 TD-SCDMA:B34/B39 CDMA:BC0 GSM:900/1800M |
||
Data Acquisition (Optional)
| Fingerprint identification | Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc. | |
| Type | TCSIST semiconductor sensor | |
| ISO Template | Support | |
| Sensor type | Capacitive | |
| Acquisition window size | 24.5*19MM | |
| Effective image size | 15.5*18.5MM | |
| Image Size | 256*360 Pixels | |
| Image Resolution | 500DPI | |
| Matching mode | contrast mode(1:1); search mode(1:N) | |
| Far infrared meter reading | Working frequency 37.9K | |
| Internal 1D Infrared Scanner: Motorola SE655 | ||
| Scanning speed: 50 times/second | ||
| Scanning distance: 5.7cm-61.0cm | ||
| Scanning angle: 53.3° ±3° | ||
| Barcode Scanning | In jacket 1D Laser Scanner: Honeywell N4313 Zebra EM1350 | |
| Scanning speed: 104 times/second+12 times/second (two way scanning) | ||
| Scanning distance: 2.5cm-114.3cm | ||
| Scanning angle: 47±3°(default) /35±3°(reduced code) | ||
| 2D Barcode Scanner : Internal Honeywell N6603 2D laser or External Newland NLS-EM3296 | ||
| Identification ability: 1D, 2D, OCR | ||
| Scanning angle: rotate 360°, incline±50°, deflection ±50° | ||
| Field of View: Horizontal 36°, vertical 23° | ||
| Depth of field: 4cm-23.5cm | ||
| Environmental luminance: 0~100,000 LUX | ||
| RFID | LF RFID: | |
| 134KHZ LF RFID or 125KHZ LF RFID | ||
| NFC (HF) RFID: | ||
| Working frequency: 13.56MHZ | ||
| Profile: Support ISO/IEC 15693, ISO/IEC 14443A profile | ||
| Support Cards: SR176, SRIX4K (TYPE-B), I- Code2, TI RFID label-it HF-I, EM4034, Mifare Classic ETC | ||
| Identification distance: not more than 5cm | ||
| UHF RFID: | ||
| Working frequency: 840-960MHz(customization of required frequency band) | ||
| Support agreement: EPC C1 GEN2/ISO 18000-6C | ||
| Output power: 10dBm-30dBm | ||
| Identification distance: not more than 6m
ImpinjR2000 chipset |
||
Physical Parameters
| Display Screen | 7 inch LCD screen, 1280×800 IPS screen, capacitive touch screen |
| Keyboard | Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset |
| Camera5 | million pixels front camera, 13 million pixels rear camera
with automatic focus and lighting functionn |
| Headset | 3.5mm audio Interface, has mike and telephone receiver |
| LED indicator light | Support (ordinary flicker, Call fast flicker, missed calls) three status bar |
| Flashlight Function | Support, can be used for emergency lighting |
| Googleplay store | Support |
| Gravity sensor | Support |
| Compass | Support |
| Vibrating motor | Support |
| FM | Support |
| Rechargeable
Lithium Battery |
3.7V, 7200mAh |
| Standby | Standby current less than 10mA |
| Dimension | 209mm*139mm*19mm |
| Weight | 590g |
Environmental Characteristics
| Working Temperature | -20℃ ~50℃ | |
| Storage Temperature | -40℃ ~60℃ | |
| Humidity | 5%-95% relative humidity; no condensation | |

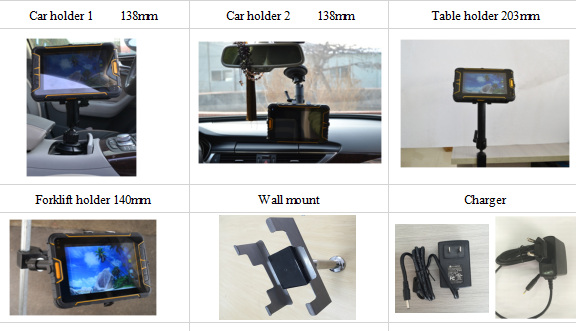

Releated Accessaries:
RFQ:
Q1: Does the IP67 Rugged handheld Tablet PC can read QR code and common 1D bar codes? Support UHF RFID Europe standard?
A1: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code, and it support America and Europe UHF RFID Standard.
Q2: What is your payment term?
A2:We accept T/T, Western Union, Paypal, Escrow.
Q3: Do you offer OEM service?
A3: OEM service is available just tell us which functions you prefer, special design, customize specification, logo laser print or customize retail boxes is available. But for retail box, we would require MOQ 100-500 units.
Q4: Can i get a sample to test with a good price?
A4:Yes ! samples will be sent within 5-7 workdays, and there is discount for bulk order.
