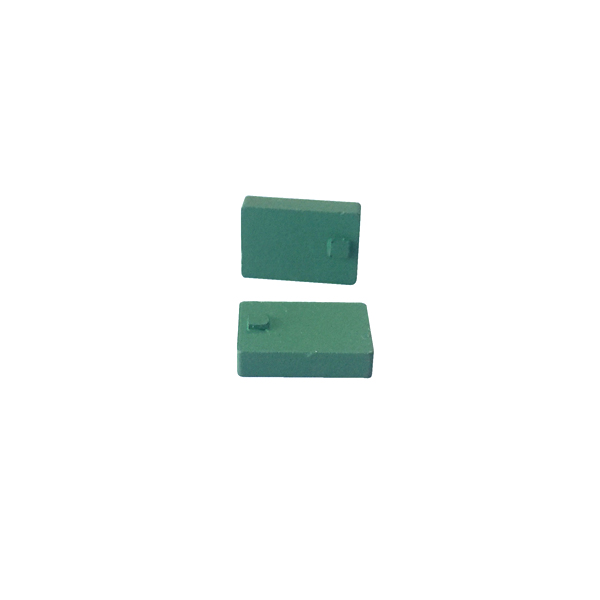

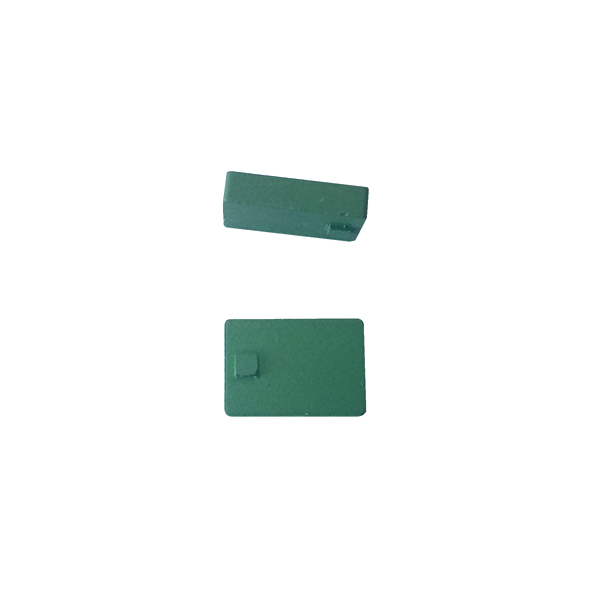

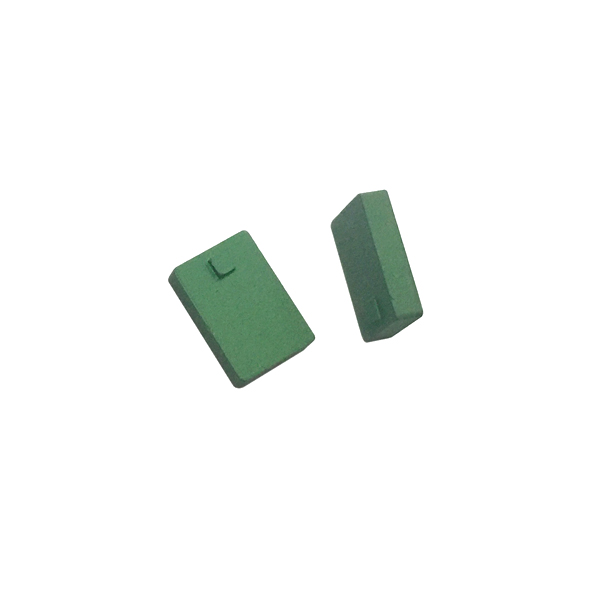

Industrail RFID UHF Tag with High Temperature Resistance(LP-1309-HT)

Industrail RFID UHF Tag with High Temperature Resistance(LP-1309-HT)

Categories: ,

Industrail RFID UHF Tag with High Temperature Resistance(LP-1309-HT)



Functional Specifications

Protocol  EPC C1G2 (ISO 18000-6C)
Operating frequency  902-928 MHz (US); 866-868 MHz (EU)
IC type Alien H3
Memory 512-bit user memory;
64-bit TID 96-bitEPC
Read rate 400 tags per second for 96-EPC bit number
Write Cycles 100,000 at 25℃
Data retention 50 years



Environmental Specification

Operating Temperature -40 to +250℃
Application Temperature -40 to +250℃
IP rate IP68
Attachment Adhesive
Warranty 1 year



Physical Specification and Read Range

Product model LP-1309-HT
Size LxWxH (mm) 13x9x3
Weight 1.8g
Avg read range on metal,4W EIRP 4.5m
Avg read range in metal,4W EIRP 2.0m
Encasing Durable Paint



Radiation Pattern

Application

IT Assets

Healthcare Line

Industrial Management

Tool tracking

Other metal product

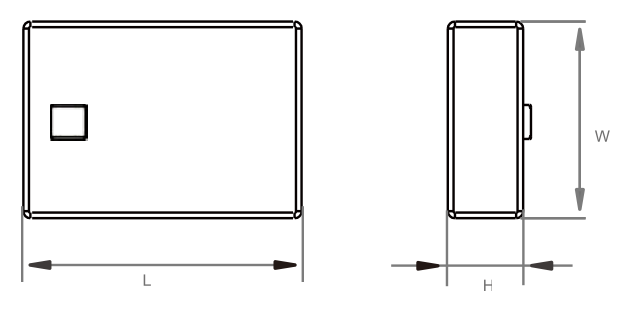

Dimension Structure

Size: LxWxH (mm) 13 x 9 x 3
