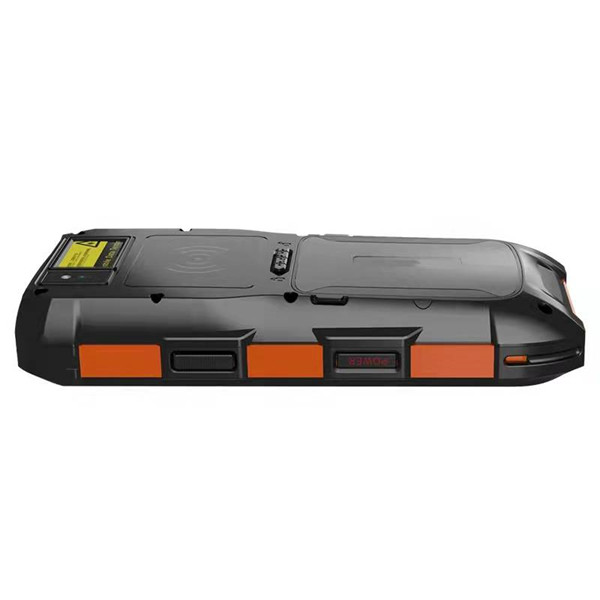

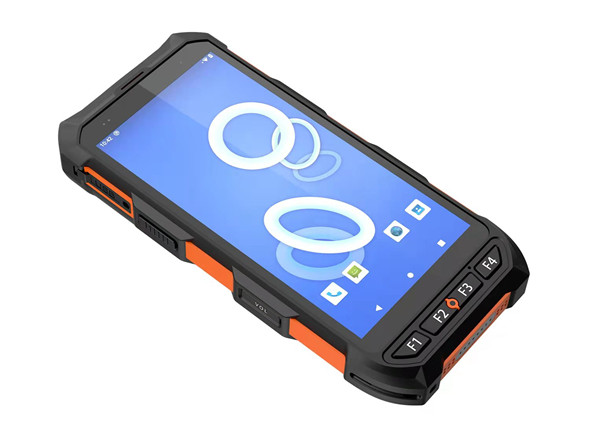

Android 10 Rugged Handheld RFID Reader with UHF/HF/LF/2D(LP-118)
- Share:
LightPioneer LP-118 handheld RFID reader is for using mobile computers when high-performance RFID reading in a compact, lightweight package is required. Sleek, semi-rugged, and lightweight, Its integrated rfid reader provide 8 ft read range combination with HoneyWell 2D scanner, helps speed up retail inventory counts, omni-channel order fulfillment, product receiving, shelf restocking, and pick lists, increasing efficiency and productivity.
Highlights:
– Android 10
– Octa-Core 2.0 GHz
– 5.5″ HD Display, Dual Camera (5MP / 13MP)
– Memory 4GB RAM / 64GB ROM
– 2dBi High Gain UHF Antenna
– RFID UHF GEN2, ISO/IEC 18000-6C/6B (Option)
– HoneyWell 2D Barcode Scanner
– 4G LTE, WIFI, BLE V4.2, GPS
– 5200mA Rechargeable Battery
– IP65 / Drop 1.5 m
| SPECIFICATIONS | |||
| PHYSICAL CHARACTERISTICS | |||
| Dimension | 170.8mm(H)x81mm(W)x28.6mm(D)±2 mm | ||
| Weight | Net Weight :400g (including battery&wrist strap) | ||
| Display | Tough 5.5 in. TFT-LCD(720×1440)touch screen with backlight | ||
| Backlight | LED backlight | ||
| Expansions | 2 PSAM, 2 SIM, 1 TF | ||
| Battery | Rechargeable li-ion polymer, 3.8V,5200mAh | ||
| PERFORMANCE CHARACTERSTICS | |||
| CPU | Cortex A73 2.0GHz octa-core | ||
| Operating System | Android 10.0 | ||
| Storage | 3+32GB or 4+64GB, MicroSD(max 256GB expansion) | ||
| USER ENVIRONMENT | |||
| Operating Temp. | -20℃ to 50℃ | ||
| Storage Temp. | -20℃ to 70℃ | ||
| Humidity | 5%RH to 95%RH(non-condensing) | ||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | ||
| Sealing | IP65, IEC compliance | ||
| ESD | ±15kv air discharge, ±8kv direct discharge | ||
| DEVELOPMENT ENVIRONMENT | |||
| SDK | LP Software Development Kit | ||
| Language | Java | ||
| Environment | Android Studio or Eclipse | ||
| DATA COMMUNICATION | |||
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20;
WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
||
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | ||
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
| DATA CAPTUER | |||
| BARCODE READER(OPTIONAL) | |||
| 2D Barcode | 2D CMOS Imager | Honeywell N6703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1 | |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | ||
| COLOR CAMERA | |||
| Resolution | Rear 13 megapixel, front 5.0 megapixel | ||
| Lens | Auto-focus with LED flash | ||
| RFID READER(OPTIONAL) | |||
| RFID Low Frequency | Frequency | 125KHz/134.2KHz(FDX-B/HDX) | |
| Protocol | ISO 11784&11785 | ||
| R/W Range | 2cm to 10cm | ||
| RFID High Frequency/NFC | Frequency | 13.56MHz | |
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | ||
| R/W Range | 2cm to 5cm | ||
| RFID UHF | Frequency | 865~868MHz or 920~925MHz | |
| Protocol | EPC C1 GEN2/ISO 18000-6C | ||
| Antenna Gain | Circular antenna(2dBi) | ||
| R/W Range | 2m(tags and environment dependent) | ||
| FINGERPRINT READER(OPTIONAL) | |||
| Sensor | TCS1xx | ||
| Sensor type | Capacitive, area sensor | ||
| Resolution | 508 DPI | ||
| Performance | FRR<0.008%, FAR<0.005% | ||
| Capacity | 1000 | ||
| PSAM SECURITY(OPTIONAL) | |||
| Protocol | ISO 7816 | ||
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | ||
| Slot | 2 slots(maximum) | ||
| ACCESSORIES | |||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable | ||

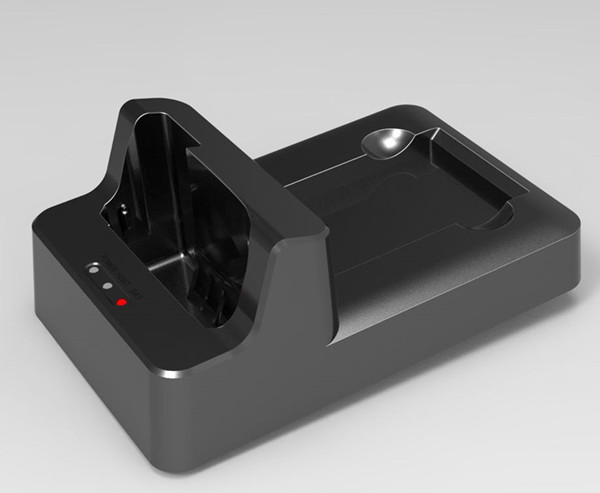

| Optional | Cradle Charging | ||
