Functional Specifications
| Protocol | EPC C1G2 (ISO 18000-6C) |
| Operating frequency | 902-928 MHz (US); 866-868 MHz (EU) |
| IC type | Alien H3 |
| Memory | 512-bit user memory; |
| 64-bit TID 96-bitEPC | |
| Read rate | 400 tags per second for 96-EPC bit number |
| Write Cycles | 100,000 at 25℃ |
| Data retention | 50 years |
Environmental Specification
| Operating Temperature | -40 to +250℃ |
| Application Temperature | -40 to +250℃ |
| IP rate | IP68 |
| Attachment | Adhesive |
| Warranty | 1 year |
Physical Specification and Read Range

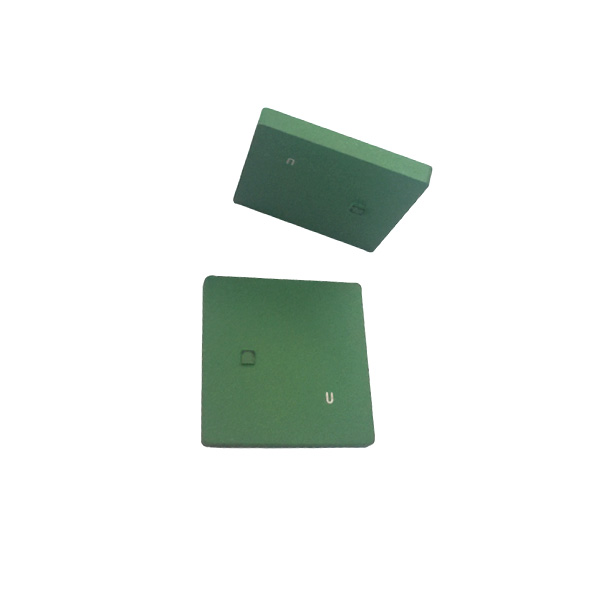

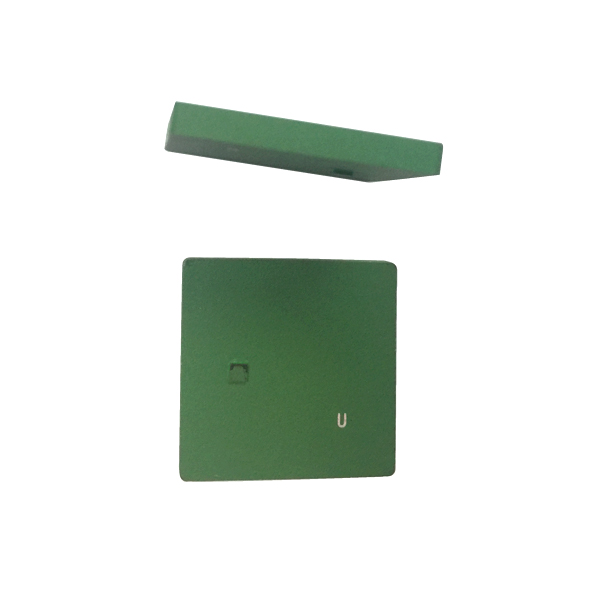

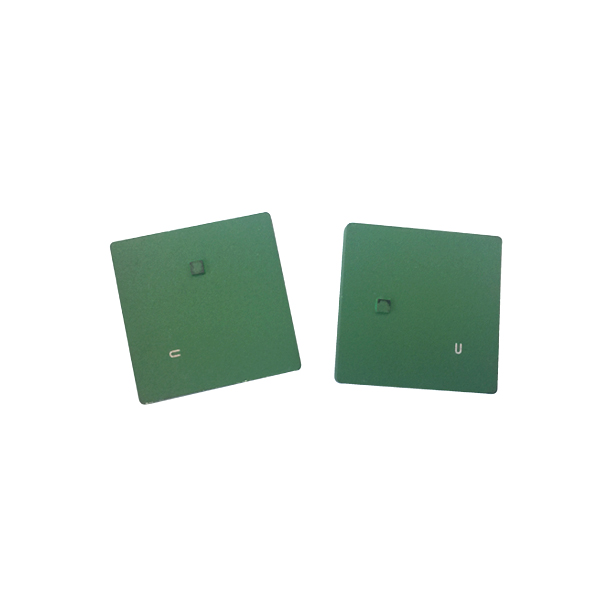

| Product model | LP-2525-HT |
| Size LxWxH (mm) | 25x25x3 |
| Weight | 10.0g |
| Avg read range on metal,4W EIRP | 9.0m |
| Avg read range in metal,4W EIRP | 4.5m |
| Encasing | Durable Paint |
Radiation Pattern

Application
IT Assets
Tool tracking
Autoclave Cycling Reading
CSSD

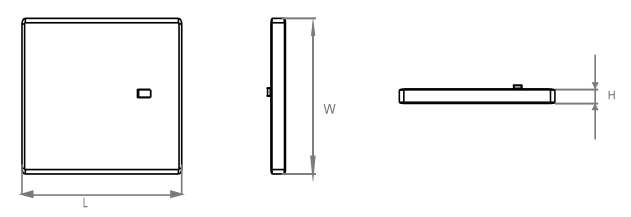

Dimension Structure

Size: LxWxH (mm) 25 x 25 x 3
