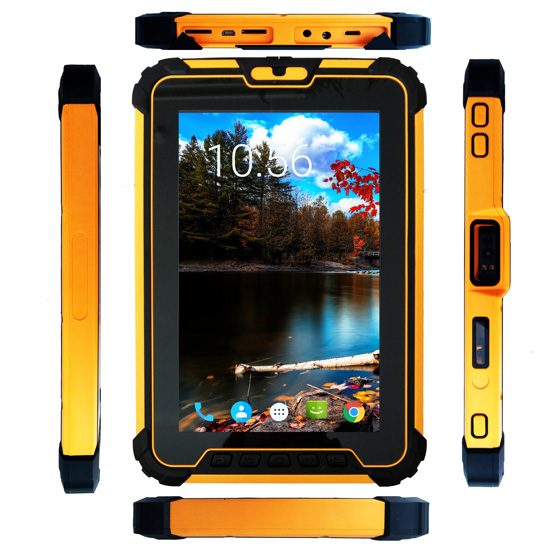

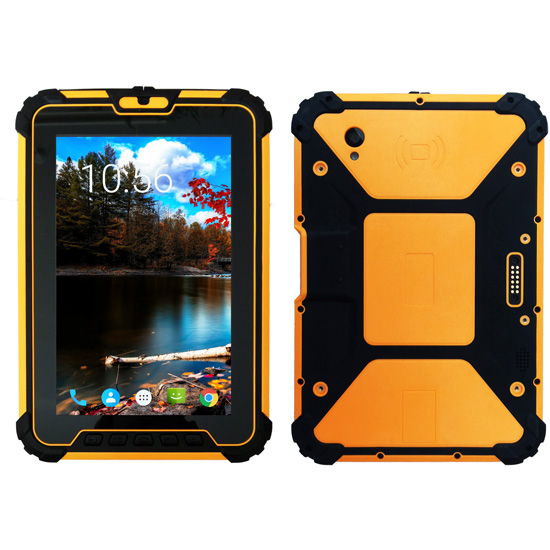

8.0 inch IP67 Android Tablet with ThingMagic M6e-Nano UHF Reader(LP-007 Plus)



Overview

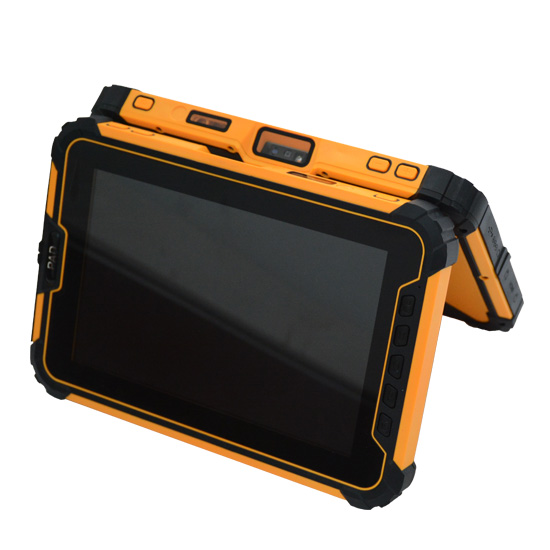

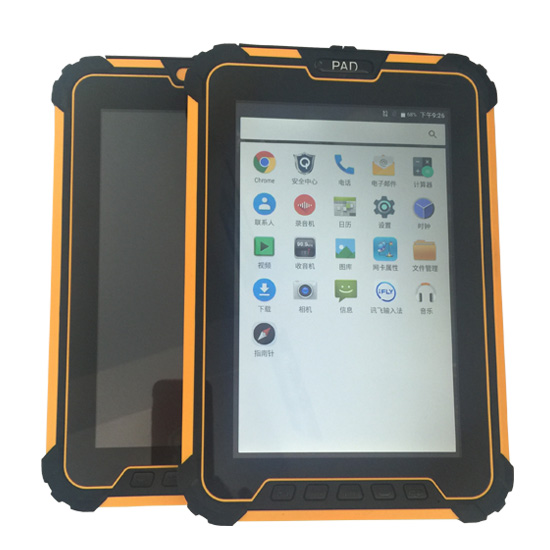

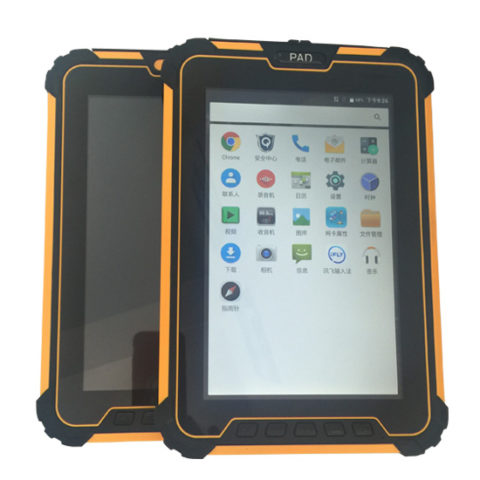

LP-007 Plus is the android tablet PDA, upgraded from LP-007, with 8.0 inch IPS touch screen, Qualcomm MSM8953 Octa core 2GHz CPU and Android 9.0 operation system; 4G RAM, 64G ROM, 4G LTE. This industrial RFID Tablet can configure barcode scanner, RFID reader, fingerprint identification as well as other information acquisition module.

The Android Tablet PDA LP-007 Plus features 10,000 mAh super long battery, IP67 high reliable three-proof structure, drop resistance and LCD screen readable under sunlight. It is ideal for employees across a range of industries, including mobile field services, logistics, warehousing, transportation, manufacturing, fleet management and more. Its impressive flexibility enables you to supply one device to meet many requirements, and it is built to be a key member of your IT infrastructure.

Key Features

Advanced system

Android 9.0 operating system; CPU MSM8953, 8 core, 2GHz CPU; RAM 4GB ROM 64GB, Micro SD 128G

Visible under strong light

8 inch LCD screen, 1920×1200 IPS capacitive touch screen with 500 NITS brightness

Powerful function

Multi function1D/2D bar code scanning, LF/HF/UHF RFID reader, fingerprint identification)

Multi communication modes

3G/4G, WIFI, Bluetooth and many wireless communication modes

Support jacket extension

Satisfy custom applications as per request

Multi Vehicle holder

Make the tablet charging and fixed easier

—————————————————————

Technical Data:

General Specifications

Model NO. LP-007 Plus
Operating System Android 9.0 OS
CPU MSM8953, 8 core CPU, 2GHz
GPU Qualcomm® Adreno™ 506 GPU,650Mhz
RAM RAM: 4GB
FLASH: 64GB
Extended Storage Micro SD, Maximum 256G
USB port 5 pin MicroUSB; Support to connect U-disk/Mouse/Keyboard/OTG line
OTG Through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing.

Support OTG extend RS232 serial port/485 serial port/RJ45 Serial port

External Port Charge port, headphone port
Protection Grade
Industrial Protection Grade IP67
Drop Grade Drop resistance from 1.2m
Wireless Communication
Bluetooth Support 4.2
GPS GPS+BDS+A-GPS+GLONASS
Support high precise GPS module(Ublox M8N/M8P,accuracy is 0.5-3M)
WIFI Support IEEE 802.11a/b/g/n/ac (2.4G and 5G bands)
2G/3G/4G LTE GSM 850/900/1800/1900   B5/B8/B3/B2
WCDMA 2100/1900/1700   B1/B2/B4
TD-SCDMA B34/B39
FDD-LTE: B1/B3/B5/B7/B8

2100/1800/850/2600/900

TDD-LTE : B38/B39/B41/B40/
Band38:2570 MHz – 2620 MHz
Band39: 1880 MHz – 1920 MHz
B41:2555-2655MHz
B40:2300-2400MHz
Physical Parameters
Display Screen 8 inch LCD screen,1280*800 (Optional 1920*1200)

IPS screen, capacitive touch screen

Keyboard Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset
Camera 5 million pixels front camera, 13 million pixels rear camera with automatic focus and lighting function
Headset 3.5mm audio Interface, has MIC and Single loudspeaker
LED indicator light Support (ordinary flicker, Call fast flicker, missed calls, charge indicator)
Flashlight Function Support, can be used for emergency lighting
Google play store Support
Gravity sensor Support
Compass Support
Acceleration sensors Support
Magnetometer Support
Light and distance sensor Support
Vibrating motor Support
FM Support
Rechargeable Lithium Battery 3.8V, 10000mAh
Standby About 500 hours
Working time About 8 hours
Dimension 232*158*22mm
Weight 810g
Environmental Characteristics
Working Temperature -10℃ ~ +50℃
Storage Temperature -40℃ ~ +60℃
Humidity 5%-95% relative humidity; no condensation
Optional Function
Fingerprint Identification Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.
Type: AuthenTec TCSIST semiconductor sensor
Acquisition window size: 24.5*19mm
Effective image size: 15.5*18.5mm
Sensor type: capacitive
Image size: 256*360 pixel
Resolution: 500 DPI
Matching mode: contrast mode(1:1); search mode(1:N)
Far Infrared Meter Reading Working frequency 37.9K
Barcode Scanning 1D Laser Scanner Index(Internal):
Honeywell N4313 or Zebra EM1350
Scanning speed: 104 times/second+12 times/second (two way scanning)
Scanning distance: 2.5cm-114.3cm
Scanning angle: 47±3°(default) /35±3°(reduced code)
2D Barcode Scanner Index(Internal):
Newlands EM3096
Honeywell N3680/6603
Motorola SE4750
Identification ability: 1D, 2D, OCR
Scanning angle: rotate 360°, incline±50°, deflection ±50°
Field of View: Horizontal 36°, vertical 23°
Depth of field: 4cm-23.5cm
Environmental luminance: 0~100,000 LUX
RFID HF RFID(Internal):
Support NFC/NXP, 13.56MHZ ISO14443A,B and ISO15693 protocol, reading distance 0-3cm,

Tag support type:SR176,SRIX4K(TYPE-B),I-Code2,TI RFID Tag-it HF-I,EM4034,Mifare Classic ETC

LF RFID: 134.2KHZ LF RFID, support ISO11784/5 protocol, support to read EM, TEMID, TK cards and compatible cards IC card(FDX/HDX)
125KHZ LF RFID, support to read ID card
UHF RFID Internal
Ray links RLM060 or ThingMagic M6E-NANO, EPC C1 GEN2/ISO 18000-6C,output power 10dBm-30dBm
Reading distance: 1m
Ceramic antenna: 0.3db(25*25*4mm)
External (not available now)
Supports EPC C1 GEN2/ ISO 18000-6C and ISO 18000-6B/6C protocol
Reading distance:1.8m/3.5m
Frequency:865-868Mhz or 920-925Mhz
Ceramic antenna: 0.3db(25*25*4mm)



Accessories:



Writing Pen

 OTG Line

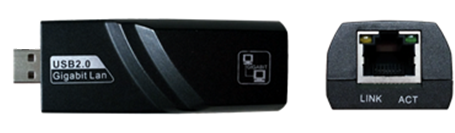

USB RJ45 Port

Wall Mount

Car Charger
