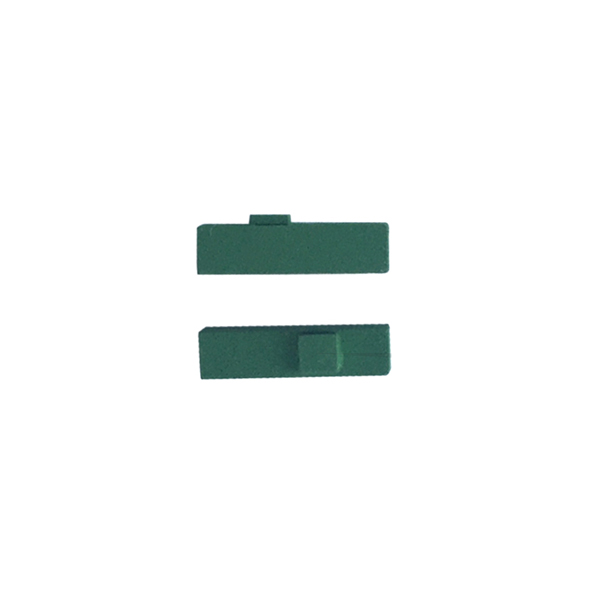

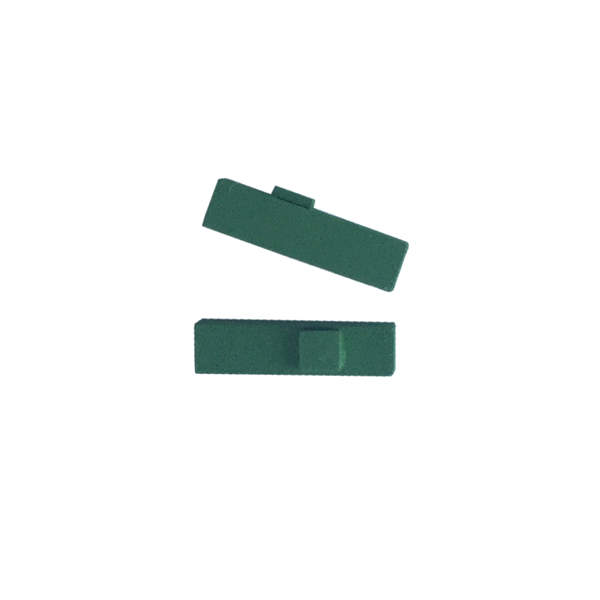

250 degree High Temperature Resistance UHF RFID Tag(LP-1002-HT)

250 degree High Temperature Resistance UHF RFID Tag(LP-1002-HT)

Categories: ,

250 degree High Temperature Resistance UHF RFID Tag(LP-1002-HT)



Functional Specifications

Protocol  EPC C1G2 (ISO 18000-6C)
Operating frequency  902-928 MHz (US); 866-868 MHz (EU)
IC type Alien H3
Memory 512-bit user memory;
64-bit TID 96-bitEPC
Read rate 400 tags per second for 96-EPC bit number
Write Cycles 100,000 at 25℃
Data retention 50 years



Environmental Specification

Operating Temperature -40 to +250℃
Application Temperature -40 to +250℃
IP rate IP68
Attachment Adhesive
Warranty 1 year



Physical Specification and Read Range

Product model LP-1002-HT
Size LxWxH (mm) 10×2.5×2.5
Weight 0.24 g
Avg read range on metal,4W EIRP 1.6 m
Avg read range in metal,4W EIRP 0.8 m
Encasing Durable Paint



Radiation Pattern

Application

IT Assets

Tool tracking

Other metal product

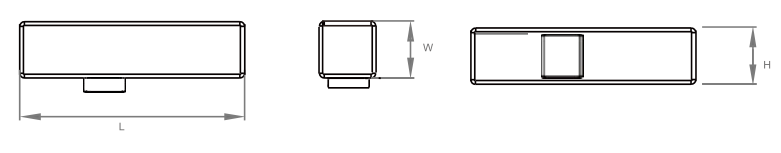

Dimension Structure

Size: LxWxH (mm) 10 x 2.5 x 2.5
