Introduction
————————————————————————————————————————————-
Hellbat is the 2018 latest generation Android industrial tablet, designed cooperating with Honeywell ex-designer, which gives you a highly protable form factor for mobile experiences at a rugged & elegant point, combined with Barcode&RFID(UHF/HF/LF/433Mz/2.4G) readers, 1.3GHz 8-core processor & Android 7.0 plus 4G high speed network communication, it’s powerful enough for firstline workers to run full data collection applications. Inside the compact mobile computer, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick- charging technology, and 5.0 inch tough Gorilla Glass 3 screen are all equipped to ensure faster and reliable performance.
Features
————————————————————————————————————————————-
Compact elegant design
Cooperated with Honeywell ex-designer, maintaining the modern, lightsome, iconic design style
Rugged Ergonomic and Over-molding for industrial application
Over-molding and ergonomic hardware design satisfy most of the tough environment from different fields;
Multifunctional with highly Customized Structure
‘All-in-One’ design conception expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF; HF+LF;
Extremely Reliable Performance
Android 7.0 OS with memory of 2GB RAM/16GB ROM (Optional: RAM 3GB / ROM 32GB) provide the highly standard experience;
High Speed Data Communication
Double insurance of 4G high Speed network and dual-frequency WIFI network provide the real-time data communication in different using environment;
HD Rugged Display
8.0 inch Gorilla Glass 3 9H screen gives high-definition visual experience for different tough environment;
Quick-Charging
Exclusive Quick-charging technology
Superior Service
Professional and skillful service involving the whole life cycle can guarantee the stability.
SPECIFICATIONS | |||
PHYSICAL CHARACTERISTICS | |||
Dimension | 230*146*20mm | ||
Weight | Net Weight :670g (including battery&wrist strap) | ||
Display | Gorilla Glass 3 9H 8.0 in. TFT-LCD(800×1280)touch screen with backlight | ||
Backlight | LED backlight | ||
Keypads | 4 TP keys, 3 function keys; Type-c interface ;
Optional : RJ45 connector ; |
||
Expansions | 2 PSAM(Can be 4), 2SIM, 1 TF | ||

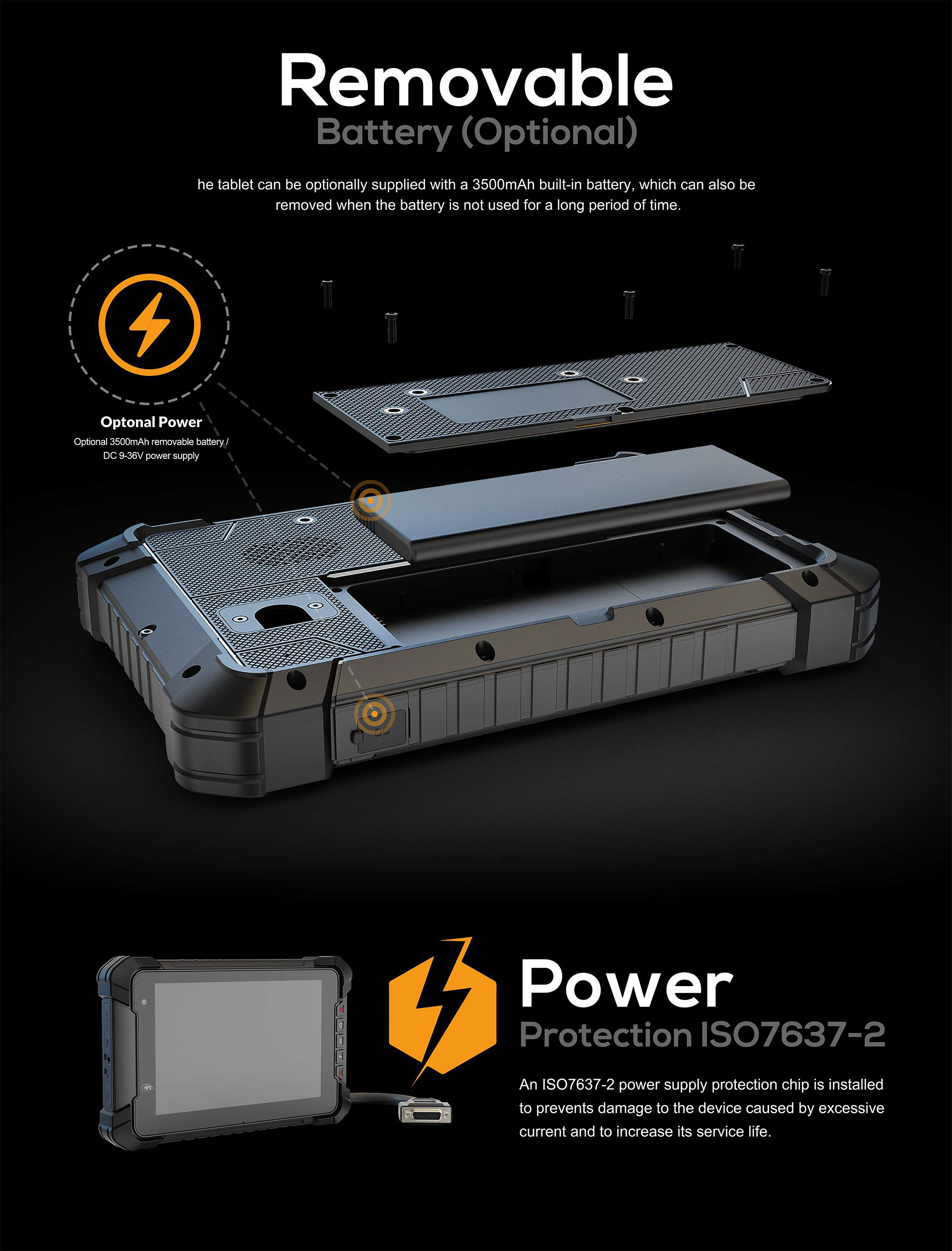

Battery | Rechargeable li-ion polymer, 3.7V, 10000mAh | ||
PERFORMANCE CHARACTERSTICS | |||
CPU | A53 1.3GHz 8-core | ||
Operating System | Android 7.0 | ||
Storage | 2GB RAM, 16GB ROM, MicroSD(max 128GB expansion)
Optional: RAM 3GB/ROM 32GB; |
||
USER ENVIRONMENT | |||
Operating Temp. | -20℃ to 50℃ | ||
Storage Temp. | -20℃ to 70℃ | ||
Humidity | 5%RH to 95%RH(non-condensing) | ||
Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | ||

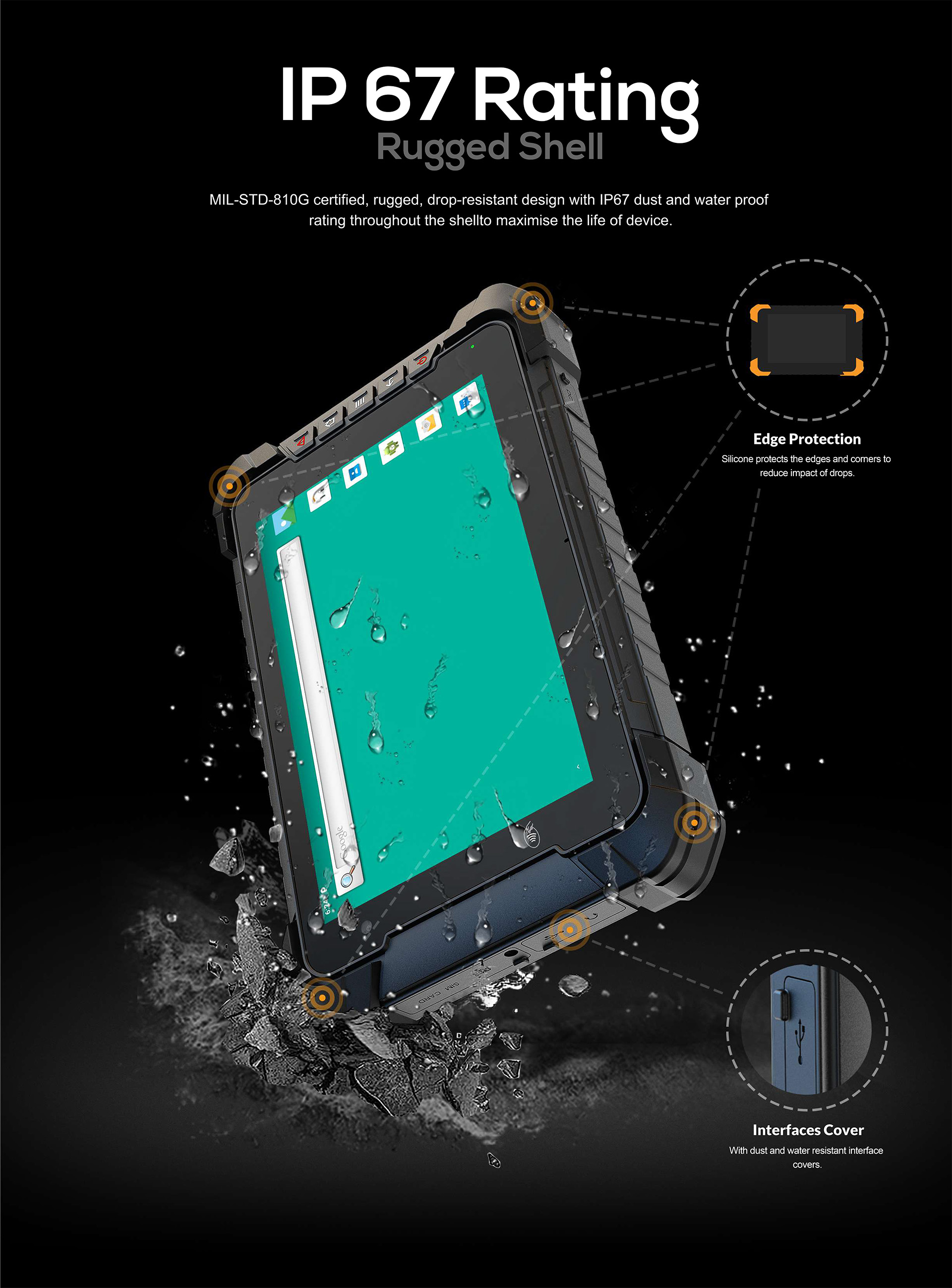

Sealing | IP67, IEC compliance | ||
ESD | ±15kv air discharge, ±8kv direct discharge | ||
DEVELOPMENT ENVIRONMENT | |||
SDK | Light Pioneer Software Development Kit | ||
Language | Java | ||
Environment | Android Studio or Eclipse | ||
DATA COMMUNICATION | |||
WWAN | TDD-LTE Band 38, 39, 40; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;
WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
||
WLAN | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n | ||
WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth 4.0 | ||
GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
DATA CAPTUER | |||
BARCODE READER(OPTIONAL) | |||
1D barcode | 1D laser engine | Honeywell N431X and others | |
Symbologies | All major 1D barcodes | ||
2D barcode | 2D CMOS Imager | Honeywell N6603 & New Land optinal | |
Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | ||
COLOR CAMERA | |||
Resolution | Front 5.0 Megapixel , Rear 13.0 megapixel | ||
Lens | Auto-focus with LED flash | ||
RFID READER(OPTIONAL) | |||
RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) | |
Protocol | ISO 11784&11785 | ||
R/W Range | 2cm to 10 cm | ||
RFID HF | Frequency | 13.56MHz | |
Protocol | ISO 14443A&15693 | ||
R/W Range | 2cm to 8cm | ||
RFID UHF | Frequency | 865~868MHz or 920~925MHz | |
Protocol | EPC C1 GEN2/ISO 18000-6C | ||
Antenna Gain | Circular antenna(2dBi) | ||
R/W Range | 2 m to 4 m (tags and environment dependent) | ||
Active 2.45GHz | Read range more than 200 m | ||
433MHz | Read range more than 200 m | ||
FINGERPRINT READER(OPTIONAL) | |||
Sensor | TCS1XX | ||
Sensor type | Capacitive, area sensor | ||
Resolution | 508 DPI | ||
Performance | FRR<0.008%, FAR<0.005% | ||
Capacity | 1000 | ||
PSAM SECURITY(OPTIONAL) | |||
Protocol | ISO 7816 | ||
Baud rate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | ||
Slot | 2 slots(maximum 4 ) | ||
ACCESSORIES | |||
Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable | ||
Optional | Carrying case; Cradle |
