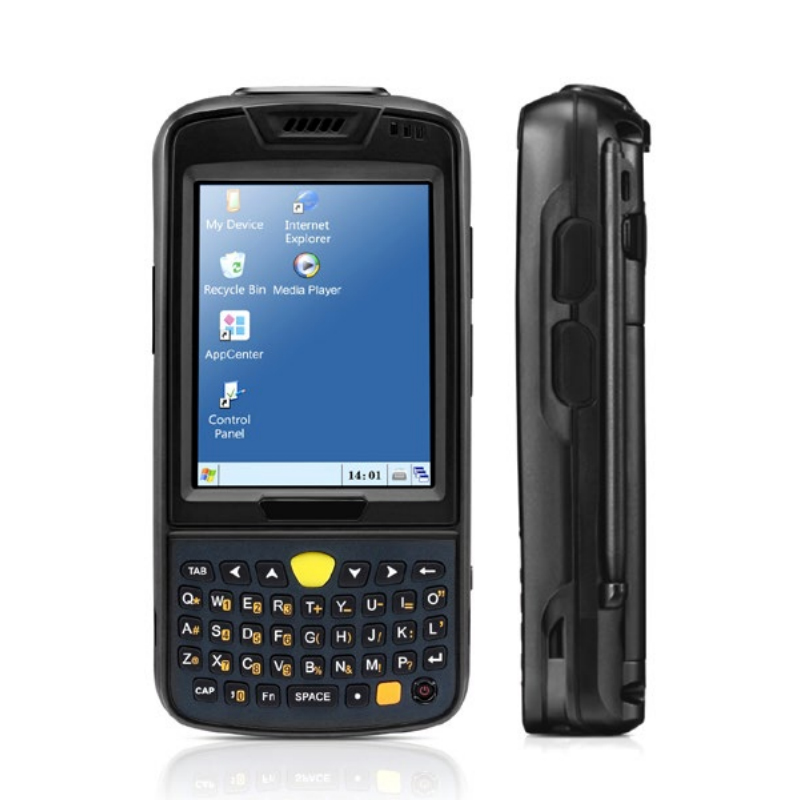

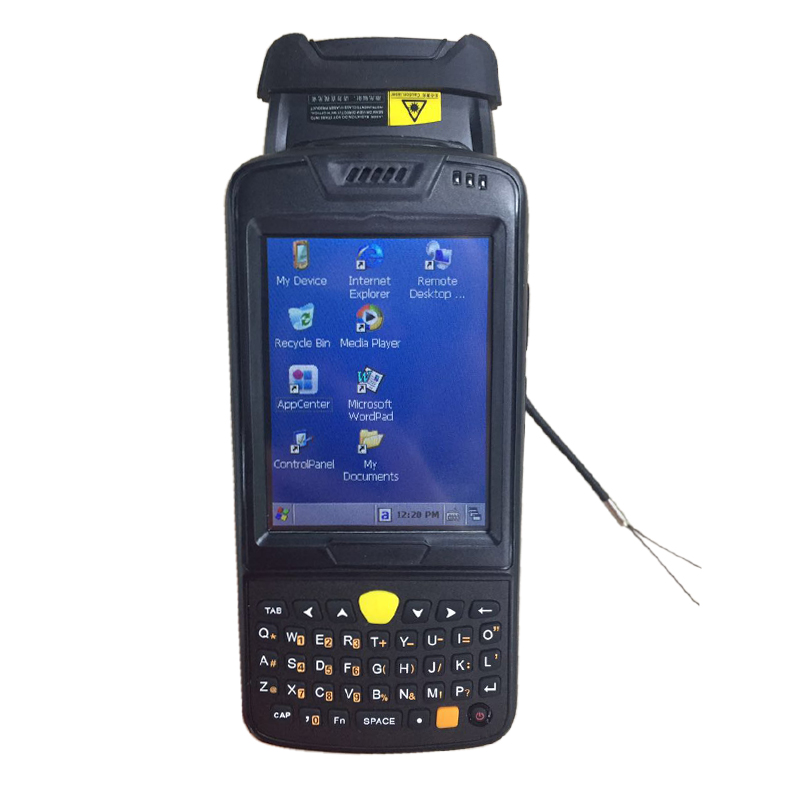

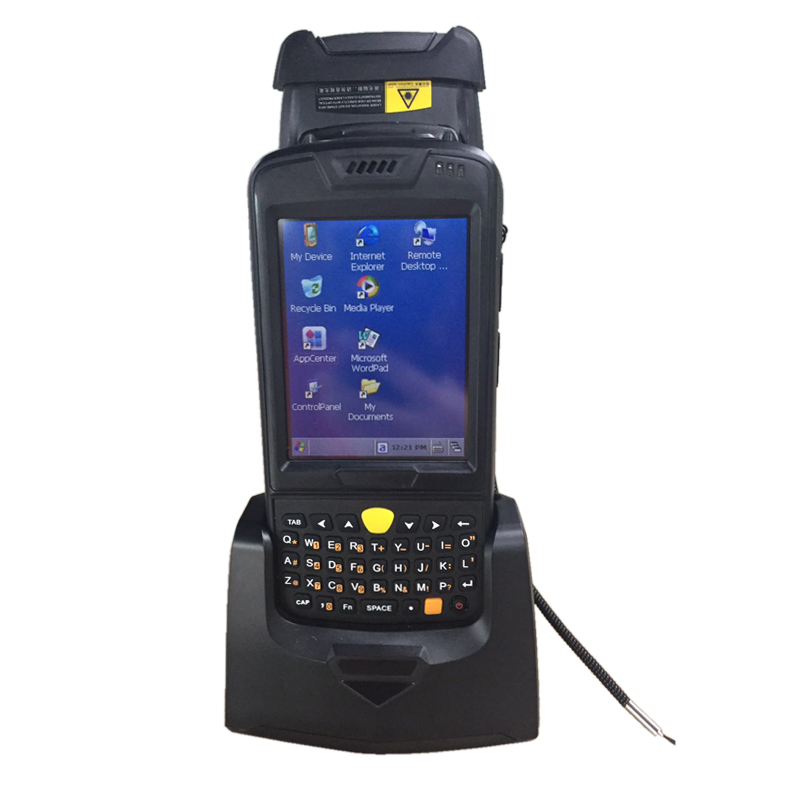

Windows Mobile Computer UHF Reader LP-008



LP-008 is the UHF mobile computer with Windows OS, features the fast and powerful Cortex-A8 800MHz processor, together with 256MB of RAM, 4GB build- in flash storage, plus a SD card slot that can add up to 32GB of memory.

It support a variety of wireless connections such as Bluetooth, 3G, and Wi-Fi. With Impinj R2000 UHF module, LP-008 provides high performance UHF RFID reading/writing capability.



Features

  • Impinj R2000 chip and Cost-effective Domestic UHFmodule optional
  • Fast Wireless Connectivity, including WCDMA, WiFi, Bluetooth and GPRS
  • Zebra 1D/2D barcode scanner, sensitive fingerprint snap-on and GPS

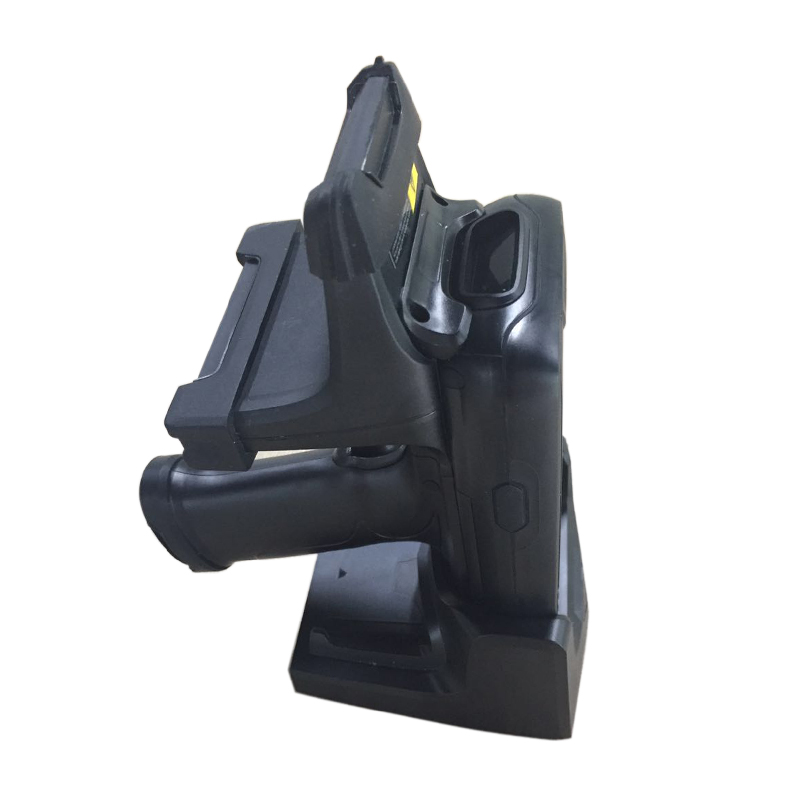

  • With the embedded 3200mAh main battery and the 5200mAh pistol battery
  • Highly Customizable



Technical Specifications



Dimensions 192mm x 87mm x 151mm/ 7.56 x 3.43 x 5.94in
Weight 656g/ 23.14oz
Display 3.5’’ QVGA (240*320), 6.5M colors
Touch Panel Rugged resistive touch panel


Power

Main battery: Li-ion, 3200mAh
Pistol battery: Li-ion, 5200mAh
Expansion Slot 1 PSAM, 1 SIM/PSAM, 1 MicroSD(TF) slot
Interfaces MicroUSB(OTG)
Audio 0.5W speaker
Keypad Numeric / Qwerty
CPU Cortex-A8 800MHz
RAM+ROM 256MB+4GB
Expansion Supports up to 32GB Micro SD card
Operating System Windows Embedded CE 6.0
SDK Software Development Kit
Language C++, C#, VB.NET
Tool Visual Studio 2005/2008
Operating Temp. 14oF to 122oF / -10oC to 50oC
Storage Temp. -40oF to 158oF / -40oC to 70oC
Humidity 5%RH – 95%RH non condensing
Drop Specification Multiple 1.5m drops to concrete across the
operating temperature range
Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
Sealing IP65
WLAN IEEE802.11 a/b/g/n
WWAN (Optional) GPRS(850/900/1800/1900MHz)
WCDMA(900/2100MHz)
WCDMA(850/2100MHz)
WCDMA(850/1900MHz)
CDMA2000 EVDO:800MHz
Bluetooth Bluetooth 2.0+EDR
GPS (Optional) UBLOX NEO-6M (Low power consumption)
1D Laser / CCD

(Optional)

Zebra SE965
Symbologies UPC/EAN, Code128, Code39, Code93, Code11,
Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of
5, Codabar, MSI, RSS, etc.
UHF Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol EPC C1 GEN2 / ISO18000-6C


Antenna

Linear polarization (1.8dBi)
Circular polarization (2.5dBi)
Power 1W (+10dBm to +30dBm)


R/W ranges

Option1 (R2000), up to 4.5m
Option2, up to 2m
Reading rates 200 tags/s
Fingerprint(Optional)
Functions Fingerprint enrollment, match, storage etc.
Sensor TCS1 / TCS2SS (Capacitive)
Image Size (pixel) TCS1: 256×360; TCS2SS: 208×288
Sensing Area (mm) TCS1: 12.8×18; TCS2SS: 10.4×14.4
Resolution (dpi) 508
Standard TCS1: FIPS, STQC; TCS2SS: ISO
PSAM (Optional)
Slots 2 PSAM slots (maximum)
Protocol ISO7816



Application



Asset management

Retail

Warehouse management

Fleet management
