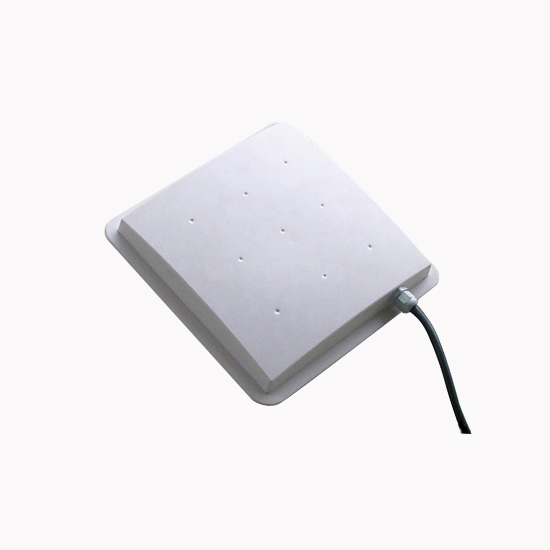

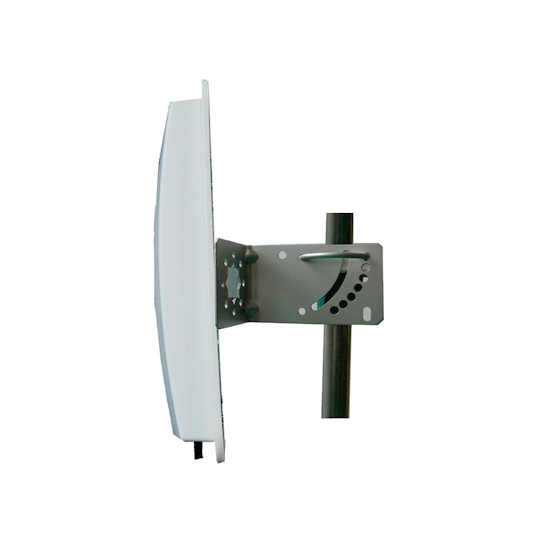

UHF Medium Range Integrated RFID Reader (LP-002)
LP-002 Medium range UHF RFID Integrated Reader is a high-efficiency reader/writer designed for high challenging RFID application environment. It utilize high efficient RF module, built-in 7dbi circular polarization antenna and combined with communication interfaces of standard Wiegand26/34, RS232, RS485 and Ethernet, which can realize a reading distance of more than 5m. It achieve an average reading speed per 64Bits less than 6ms and multi-reading tag identification synchronously with anti-collision.
LP-002 adopts ABS industrial plastic case. It is waterproof, dustproof and has excellent anti-interference and lightning protection capability.
Key Features
- EPC G2, ISO18000-6B，ISO 18000-6C compliant
- Multi-Regional support
- Integrated designed, water and dust proof
- Built-in high performance antenna
- Frequency Hopping Spread Spectrum mode, with powerful anti-jamming capability
- Dense Reader Mode capability
- Specific tag read/write capability
- Support many development languages e.g. VC, VB, C# etc…
- Available in many connectivity and customizable.
Technical Specifications
| Model NO. | LP-002 |
| Operating Frequency | 865~868MHz & 902~928MHz or customizable |
| Tag Protocols | ISO18000-6B, ISO18000-6C (EPC GEN2) |
| Operation Mode | FHSS |
| RF Power Output | 0 to 30 dBm (adjustable through software) |
| Reading Speed | Software Programmable,
Average Reading per 64Bits:<6ms |
| Communications Interface | Standard Wiegand26/34, RS485, RS232； Software Programmable |
| I/O Interface | Trigger input one team, anti-collision and multi-reading |
| Read/Write Distance | > 5m |
| Reading Clue | Buzzer |
| Antenna Compatibility | Built-in 7 dBi circular polarization antenna |
| Power Supply | DC+9V (Power Adapter Included) |
| Dimensions | 260mmx260mmx40mm |
| Weight | 1KG |
| Operating Temperature | -20℃~+80℃ |
| Housing | ABS |
| Color | White |
Applications
- Vehicle Management
- Asset Management
- Personnel Management
- WIP Management
- Logistic Management and Traceability
- Anti-counterfeiting Track and Trace
- Mining Management
- Shipyard Management
- Location Management
