Handheld PDA Rugged POS terminal(LP-113)
Overview
LP-113 comes with printing function, same as a small computer, which is “smart POS+ cash register”, thus be widely used in ticketing by ticket office staff, POS cash registering in hospital, paying taxes on POS machine with credit card in local tax bureau, seized fake plate vehicles by traffic police with POS machines, street parking charging paying fees in Meter Reading System,etc.
Key Features
- Android OS
- 4G LTE Network
- Wireless communication
- 3000mAh battery
- Qualcomm CPU
- Accurate positioning
Technical Specifications
| Physical Parameter | |
| Design | Bar phone |
| Keys | Seventeen |
| Dimensions(L*W*D) | 180mm*75mm*33/46mm |
| Weight | 420g |
| Function Parameter | |
| Operating System | Goodle Android 6.0 |
| CPU | Qualcomm 8909, 1.2Ghz, Quad Core |
| Memory and Extension | T-Flash/Micro SD Card, up to 32GB |
| Display | 4 inch TFT LCD, Resolution 800*480 |
| Panel | Capacitive touch screen |
| Camera | Rear 8.0M Pixels, Auto Focus with Flash |
| GPS | GPS,GLONASS supported,10m |
| Bluetooth | BT4.0 LE |
| WIFI | IEEE 802.11b/g/n |
| Memory | 1GB RAM,8GB ROM |
| Networks | GSM：850/900/1800/1900 |
| WCDMA：B1/B2 | |
| CDMA：BC0 | |
| TD-SCDMA：B34/B39 | |
| TDD-LTE：B38/B39/B40/B41 | |
| FDD-LTE：B1/B3 | |
| Optional Functions | |

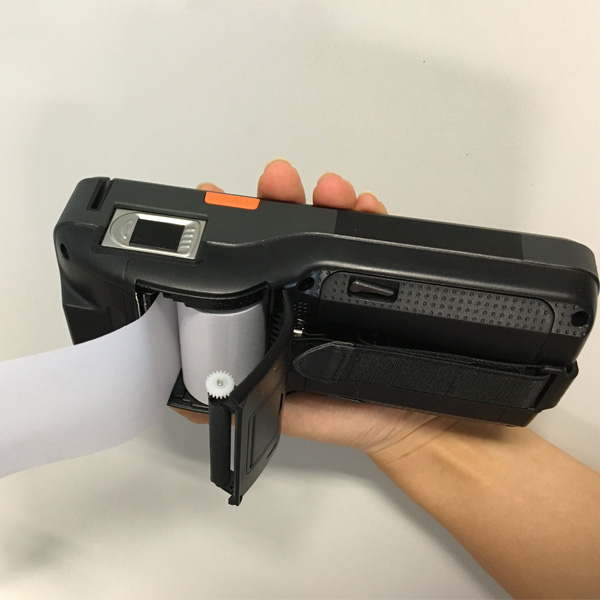

| Printer | 58mm,thermal printer,speed 40mm/s |

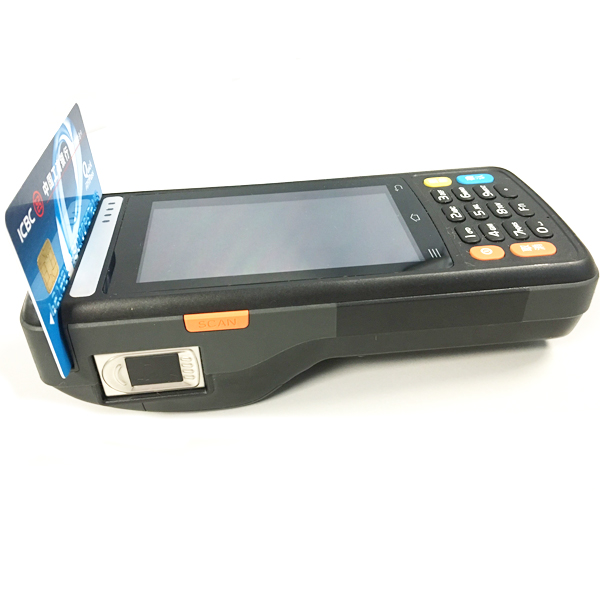

| MSR | SUPPORTED |
| Contactless IC Card | ISO/IEC 14443 Type A/B,ISO15693 |
| Contact IC Card | Compatible with ISO 7816-3 and EMV4.2 payment standard |
| PSAM Card | 1 Psam card slots |

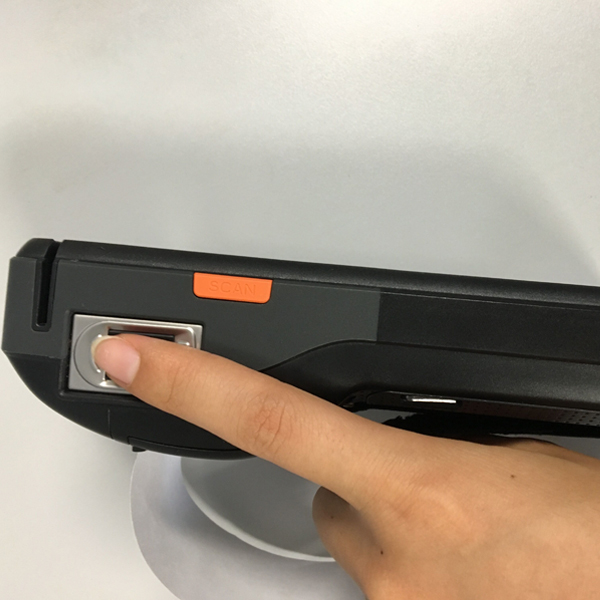

| Fingerprint Sensor | Capacitive Sensor, 508 DPI |

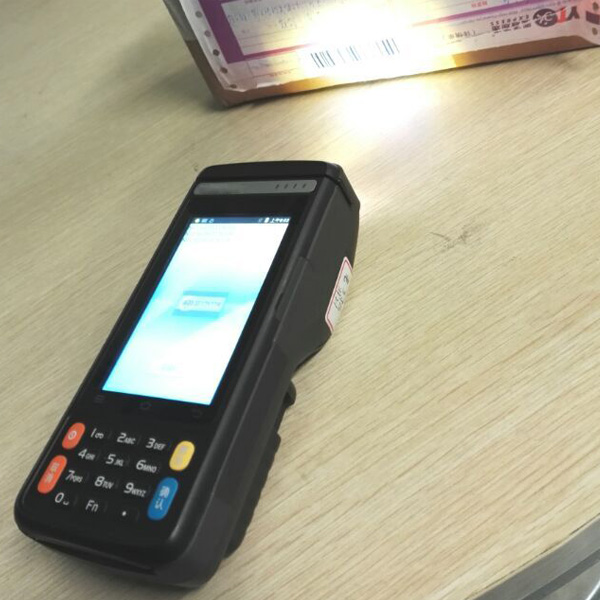

| Barcode Scanner | 1D Linear Scanner : |
| UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, | |
| GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, | |
| Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, | |
| Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes | |
| 2D Imager Scanner: | |
| PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, | |
| QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, | |
| US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, | |
| USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal | |
| Other Parameter | |
| Battery Pack | 7.4V, 3000mAh ,MTBF no less than 10000 hours |
| Serial | UART or RS232 |
| USB | Mini USB OTG,USB 2.0 HS compatible |
| AC/DC Adapter | DC 9V/1.5 |
| Headphone | Supported, 3.5mm |
| Speaker | supported |
| Voice Call | supported |
| User Environment | |
| Operating Temp | -10℃ ~ 50℃ |
| Storage Temp | -20℃ ~ 70℃ |
| Humidity | 5% ~ 95% (non condensing) |
| Roller Drop Test | 500 times (1000 hits) |
Application
Logistic
Supermarket
Charging
Mall
