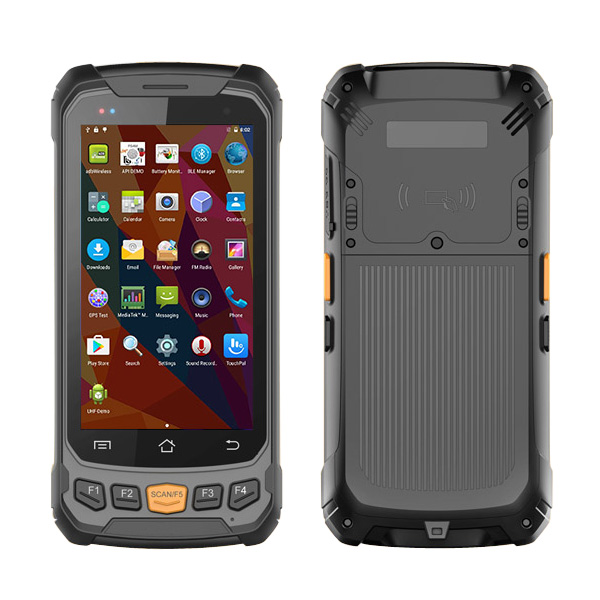

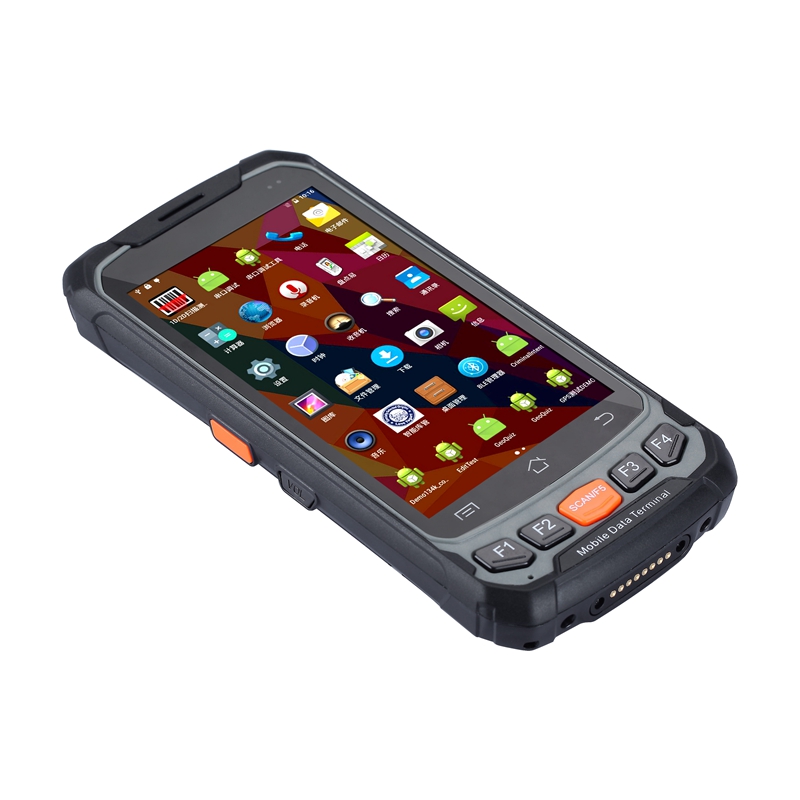

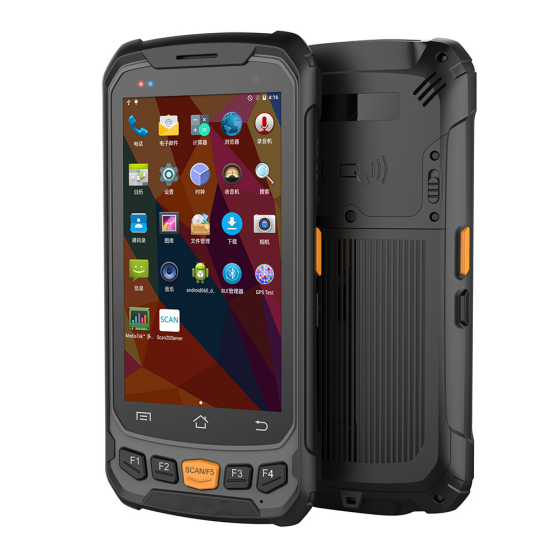

Compact Android Handheld Terminal with 4G/WIFI/GPS/Bluetooth(LP-111)



Overview

LP-111 serial products extend Handheld-Wireless product serials into Android 5.1.1 OS with 4G high speed network communication. Inside the compact handheld device, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick- charging technology, and 4.7 inch tough Gorilla Glass 3 screen are all equipped to ensure performance. Latest 1.3GHz quad-core processor 2GB RAM/16GB ROM and up to 32GB expansion are all designed to boost up experience level.



Key Features



  • Android 5.1.1 OS, 2GB RAM, 16GB ROM
  • Double insurance of 4G high Speed network and dual-frequency WIFI network
  • Rugged Ergonomic and Over-molding Design
  • Extremely Stable Hardware Display
  • ‘All-in-One’ hardware design conception can expand the hardware modules integrationlike UHF+HF, UHF+LF; HF+LF;
  • Quick-Charging
  • Professional and skillful service



Technical specifications



SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Model No. LP-111
Dimension 162mm(H)x78mm(W)x22mm(D)±2 mm
Weight Net Weight :<450g (including battery&wrist strap)
Display Gorilla Glass 3 9H 4.7 in. TFT-LCD(720×1280)touch screen with backlight
Backlight LED backlight
Keypads 3 TP keys, 5 function keys, 4 side buttons
Expansions 2 PSAM, 1 SIM, 1 TF
Battery Rechargeable li-ion polymer, 3.7V, 4300mAh
PERFORMANCE CHARACTERSTICS
CPU Quad A53 1.3GHz quad-core
Operating System Android 5.1.1
Storage 2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)
USER ENVIRONMENT
Operating Temp. -20℃ to 50℃
Storage Temp. -20℃ to 70℃
Humidity 5%RH to 95%RH(non-condensing)
Drop Specifications 5ft./1.5 m drop to concrete across the operating temperature range
Sealing IP65, IEC compliance
ESD ±15kv air discharge, ±8kv direct discharge
DEVELOPMENT ENVIRONMENT
SDK Software Development Kit
Language Java
Environment Android Studio or Eclipse
DATA COMMUNICATION
WWAN TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;

WCDMA(850/1900/2100MHz);

GSM/GPRS/Edge (850/900/1800/1900MHz);

WLAN 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n
WPAN Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS GPS(embedded A-GPS), accuracy of 5 m
DATA CAPTUER
BARCODE READER(OPTIONAL)
1D barcode Symbologies All major 1D barcodes
2D barcode 2D CMOS Imager New Land Scan Engine
Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution 8.0 megapixel
Lens Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID LF Frequency 125KHz/134.2KHz(FDX-B/HDX)
Protocol ISO 11784&11785
R/W Range 2cm to 10 cm
RFID HF Frequency 13.56MHz
Protocol ISO 14443A&15693
R/W Range 2cm to 8cm
RFID UHF Frequency 865~868MHz or 920~925MHz
Protocol EPC C1 GEN2/ISO 18000-6C
Antenna Gain Circular antenna(2dBi)
R/W Range 2 m to 4 m(tags and environment dependent)
Active 2.45GHz Read range more than 200 m
433MHz Read range more than 200 m
PSAM SECURITY(OPTIONAL)
Protocol ISO 7816
Baud rate 9600, 19200, 38400,43000, 56000, 57600, 115200
Slot 2 slots(maximum)
ACCESSORIES
Standard 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable
Optional Carrying case; Cradle
