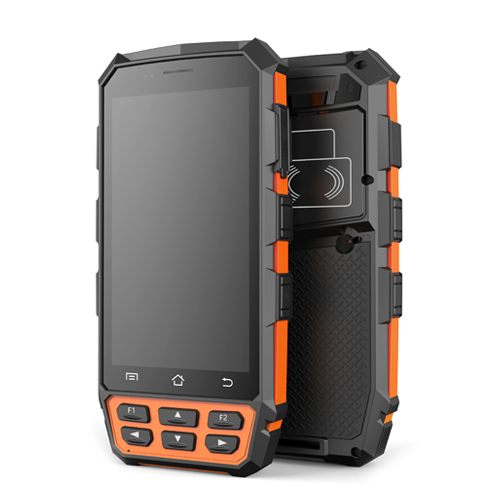

Android 7.0 UHF Handheld 4G RFID Reader/Barcode reader (LP-006)

Android 7.0 UHF Handheld 4G RFID Reader/Barcode reader (LP-006)

Categories: ,

FCC Android 7.0 UHF Handheld RFID Reader/Barcode reader

(FCC ID:2AOJULP-006D)

Overview

Rugged and ready for all-day every day enterprise use

In order to work more efficiently and better serve your customers, the employees in your front line need enterprise class handheld computers to communicate and access information in real time – yet they want a device that is every bit as refined and easy-to-use as their own consumer devices. Now, you can give them both with the Pioneer LP-006. The LP-006 is the professional grade Android device built from the ground up for the enterprise. You get cutting edge technology,  which turns Android into a true enterprise-class operating system plus our most advanced scan engine that delivers faster, more reliable and longer range data capture capability. The rugged design is ready for the most demanding business day. and the LP-006 can double as a walkie-talkie and a mobile desk phone. The LP-006 – Having the right device makes all the difference.

Key Features

Android system, Quad A53 1.5GHz quad-core, high-capacity storage space

With Android 7.0 OS, high-speed quad-core 1.5GHZ processor, 2GBRAM, 16GBROM

Can easily handle each task instructions and support multiple tasks to run smoothly

The best guarantee of a mobile information processing

High Speed Diversified of wireless data communication

2.4Ghz & 5Ghz dual-frequency WIFI

Supports IEEE802.11 a / b / g / n / ac, get rid of constraints under B / G mode channel for network bandwidth

Support for Bluetooth 4.0 with better performance, ensure the real-time data communication under different environment



Extremely Stable Hardware Display

Utilize the 3rd generation of Gorilla Glass 5.0 inch 720P high-definition touch screen

Resolution up to 1280 * 780, sun visible provide high-definition experience and ruggedness

High performance of RFID UHF / HF read and write functions

UHF read range ≥2.5M, the farthest reading distance is up to 4M

Stable performance for high frequency read, and achieve HF / UHF dual frequency RFID reader functions on the same machine as per customer demand



Flexible Customized Structure

Various types of modules are available as per request, and part of tailor module assembly is welcome to meet the needs of different industries.

Accept secondary development of the system kernel and the upper layer application software according to customer demand

Carry functions of fingerprint, ID card reading function as demand, to meet requirements for all walks of life for personnel identification and documentation



Rugged Ergonomic and Over-molding Design, Quick-Charging

Over-molding and ergonomic hardware design satisfy most of the harsh environment from different fields

Quick-charging technology provide the most efficient experience



Technical Specifications



PHYSICAL CHARACTERISTICS
  Model NO.  LP-006
 Dimension  170mm(H)x85mm(W)x23mm(D)±2 mm
 Weight  Net Weight :370g (including battery&wrist strap)
 Display  Gorilla Glass 3 9H 5.0 in. TFT-LCD(720×1280)touch screen
 With backlight
 Backlight  LED backlight
 Keypads  3 TP keys, 6 function keys, 4 side buttons
  Battery   4500mAh
 Expansions  2 PSAM, 1 SIM, 1 TF
PERFORMANCE CHARACTERSTICS
 CPU  Quad A53 1.5GHz quad-core
 Operating System  Android 7.0
 Storage  2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)

USER ENVIRONMENT
 Operating Temp.  -20℃ to 50℃
 Storage Temp.  -20℃ to 70℃
 Humidity  5%RH to 95%RH(non-condensing)
 Drop Specifications  5ft./1.5 m drop to concrete across the operating temperature range
 Sealing  IP65, IEC compliance
 ESD  ±15kv air discharge, ±8kv direct discharge

DEVELOPMENT ENVIRONMENT
 SDK LightPioneer Software Development Kit
 Language  Java
 Environment  Android Studio or Eclipse



DATA COMMUNICATION
 WWAN  TDD-LTE Band 38, 39, 40, FDD-LTE Band 1, 2, 3, 4, 7;
 WCDMA(850/1900/2100MHz);
 GSM/GPRS/Edge 850/900/1800/1900MHz);
 WLAN  2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
 WPAN  Bluetooth Class v2.1EDR, Bluetooth v3.0HS, Bluetooth v4.0
 GPS  GPS(embedded A-GPS), accuracy of 5 m

DATA CAPTUER
BARCODE READER(OPTIONAL)
 1D barcode  1D laser engine  Honeywell N4313
 Symbologies  All major 1D barcodes
 2D barcode  2D CMOS Imager  Honeywell N6603
 Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal.etc



COLOR CAMERA
 Resolution  8.0 megapixel
 Lens  Auto-focus with LED flash



RFID READER(OPTIONAL)
 RFID LF  Frequency  125KHz/134.2KHz(FDX-B/HDX)
 Protocol  ISO 11784&11785
 R/W Range  2cm to 10 cm
 RFID HF  Frequency  13.56MHz
 Protocol  ISO 14443A&15693
 R/W Range  2cm to 8cm
 RFID UHF  Frequency  865~868MHz or 902~928MHz
 Protocol  EPC C1 GEN2/ISO 18000-6C
 Antenna Gain  Circular antenna(2dBi)
 R/W Range  1 m to 1.5 m

(tags and environment depended)

 Active 2.45GHz  Read range more than 200 m
 433MHz  Read range more than 200 m



ZigBee READER(OPTIONAL)
 Protocol  IEEE 802.15.4
 Reading Range  100 m to 200 m

FINGERPRINT READER(OPTIONAL)
 Sensor  TCS1ST
 Sensor type  Capacitive, area sensor
 Resolution  508 DPI
 Performance  FRR<0.008%, FAR<0.005%
 Capacity  1000



PSAM SECURITY(OPTIONAL)
 Protocol  ISO 7816
 Baudrate  9600, 19200, 38400,43000, 56000, 57600, 115200
  Slot  2 slots(maximum)



ACCESSORIES
 Standard  1xPower Supply
 1xLithium Polymer Battery
 1xDC charging cable
 1xUSB data cable

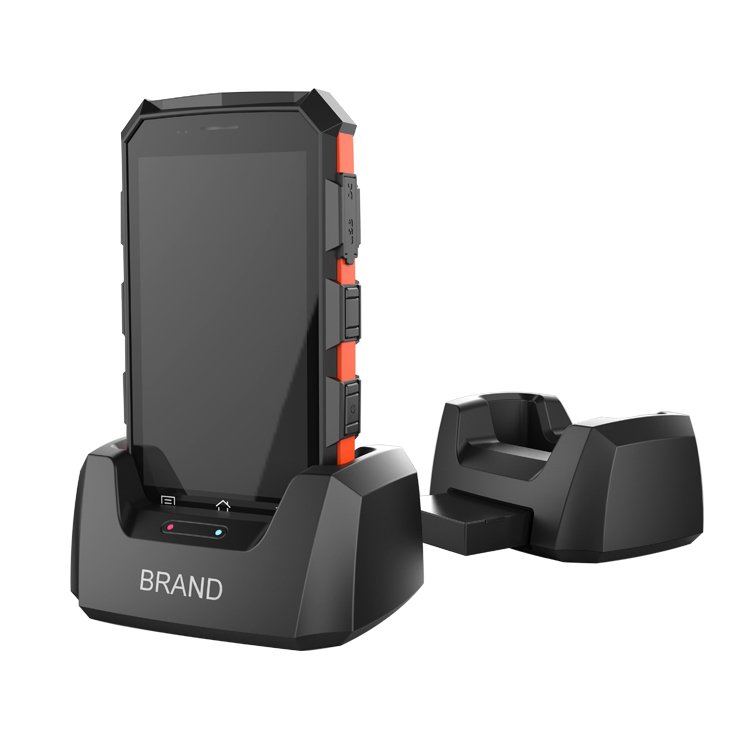

  Optional  Magnetic charging cable; Carrying case
